TUSB2140

Features: The main features of the TUSB2140 hub and embedded function are listed in the following sections.1.1.1 Hub• Universal Serial Bus (USB) Version 1.0 Compatible• Includes Serial Interface Engine (SIE)• All Four External Downstream Ports Support Full-Speed and Low-Speed Ope...

product image

TUSB2140 Picture
See larger image
SeekIC No. : 004533859 Detail

TUSB2140: Features: The main features of the TUSB2140 hub and embedded function are listed in the following sections.1.1.1 Hub• Universal Serial Bus (USB) Version 1.0 Compatible• Includes Serial I...

TUSB2140 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TUSB2140
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

The main features of the TUSB2140 hub and embedded function are listed in the following sections.
1.1.1 Hub
• Universal Serial Bus (USB) Version 1.0 Compatible
• Includes Serial Interface Engine (SIE)
• All Four External Downstream Ports Support Full-Speed and Low-Speed Operations
• Integrated USB Transceivers
• Power Switching and Overcurrent Conditions are Reported for Per Port or Ganged Modes
1.1.2 Embedded Function
• USB Display Class Compatible
• Supports both Control and Interrupt Data Transfers
• Integrated FIFOs and Control/Status Registers
• Supports Interrupt Driven Operation to Minimize Local Micro-Controller Polling
• Supports USB Remote Wake-Up
1.1.3 General Characteristics
• Low-Power CMOS Technology
• Generates a Clock Output With a Frequency of 12 MHz, 8 MHz, 6 MHz, or 4 MHz
• Available in a 40-Pin Dip Package or a 64-Pin TQFP Package
• Requires a 48-MHz Crystal or Oscillator Input
• Uses a 3.3 V and 5 V Power Supply


Pinout

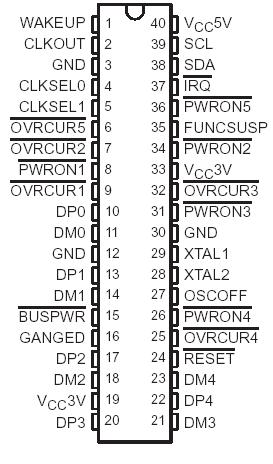

Connection Diagram


Specifications

Supply voltage range, VCC3V (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to 3.8 V
Supply voltage range, VCC5V (see Note 1)  . . . . . . . . . . . . . . . . . . . . . . . . .0.5 V to 5.5 V
Input voltage range, VI: (3.3 VCC3V)  . . . . . . . . . . . . . . . . . . . . . .0.5 V to VCC3V + 0.5 V
                                       (5 VCC5V) V . . . . . . . . . . . . . . . . . . . . . . . .0.5 V to VCC5V + 0.5
Output voltage range, VO (3.3 VCC3V)  . . . . . . . . . . . . . . . . . . . .0.5 V to VCC3V + 0.5 V
Input clamp current, IIK, (VI < 0 V or VI > VCC3V)  . . . . . . . . . . . . . . . . . . . . . . . . .±20 mA
Output clamp current, IOK, (VO < 0 V or VO > VCC3V)  . . . . . . . . . . . . . . . .  . . . . . .±20 mA
Storage temperature range, Tstg  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65°C to 150°C
Operating free-air temperature range, TA C . . . . . . . . . . . . . . . . . . . . . . . . . .40°C to 85°
NOTE 1: All voltage levels are with respect to GND.
