TUA4307

Features: Only one 2-pin-oscillator for the 1st LO; in AM mode the oscillator frequency is dividedFM/AM field strength output combined Integrated AGC generation for PIN Diodes and MOSFETs High input/output 3rd order interceptpointIF counter output with request function pin Station detector with S ...

product image

TUA4307 Picture
See larger image
SeekIC No. : 004533792 Detail

TUA4307: Features: Only one 2-pin-oscillator for the 1st LO; in AM mode the oscillator frequency is dividedFM/AM field strength output combined Integrated AGC generation for PIN Diodes and MOSFETs High input...

TUA4307 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TUA4307
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Only one 2-pin-oscillator for the 1st LO; in AM mode the oscillator frequency is divided
 FM/AM field strength output combined
Integrated AGC generation for PIN Diodes and MOSFETs
High input/output 3rd order interceptpoint
IF counter output with request function pin
Station detector with S curve criterion and adjustable fieldstrength threshold (Output combined with AM)
Adjustment free oscillator with ceramic resonator 912 kHz




Application

 AM/FM car radio receiver with analog/digital STS (search tuning stop)
Interference noise detector with integrated high-pass filter (IF level signal or MPX input)
Noise blanking at MPX -demodulator outputs- L, R audio is common to AM Mode


Pinout

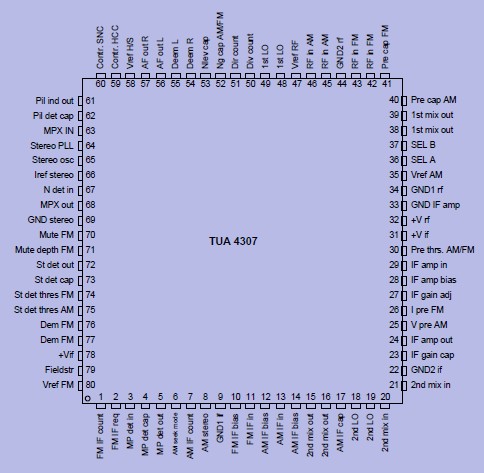

Connection Diagram


Specifications

Parameter Symbol

Limit Values

 Unit Remarks
min max
Junction temperature TJ -40 150
Storage temperature TS -40 125
Thermal resistance RthSA   54 K/W
ESD-voltage, HBM VESD -4 +4 kV 100pF, 1500



Description

The TUA4307 is a one chip car radio system consisting of AM/FM receiver, AM-Up/Down conversion, AGC amplifier/ demodulator, FM-IF limiter amplifier/ demodulator and stereodecoder / noiseblanker.
