Features:

`SINGLE SUPPLY OPERATIONFROM 2.7V TO 16V
`LOWSUPPLYCURRENT: 500A (VCC = 5V)
`LATCH - UP IMMUNITY


Application

·RAIL TO RAIL INPUT AND OUTPUT
·EXTREMELYLOW INPUT BIAS CURRENT : .1pA typ.
·1MHz TYPICALGAIN BANDWIDTH PRODUCT
·SPECIFIED FOR 600W OUTPUT LOAD


Pinout

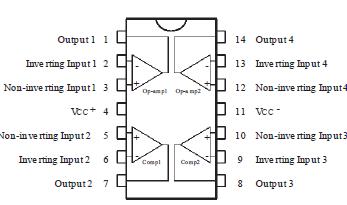

Connection Diagram


Specifications

Symbol Parameter
Value
Unit
VCC Supply Voltage - (note 1)
18
V
Vid Differential Input Voltage - (note 2)
±18
V
Vi Input Voltage - (note 3)
-0.3 to 18
V
Iin Current on Inputs (Op-Amps)
±50
mA
Io Current on Outputs (Op-Amps)
±130
mA
Toper
Tstg
 Operating Free Air Temperature Range
Storage Temperature
-40 to +125
-65 to +125




Description

The TSM221 isa space-savingmonolithic ICwhich includes a dual Rail to Rail op-amp and a micropower dual comparator, using a CMOS process. Thismixed circuit isa generalpurposeanalogblock for Telecom or Industrial applications, offering an integrated high performances solution.
