TSLB257

Features:

Converts Light Intensity to Output Voltage
Integral Color Filter in Blue, Green, or Red
Monolithic Silicon IC Containing Photodiode, Operational Amplifier, and Feedback Components
High Sensitivity
Single Voltage Supply Operation
Low Noise (200 mVrms Typ to 1 kHz)
Rail-to-Rail Output
High Power-Supply Rejection (35 dB at 1 kHz)
Compact 3-Leaded Plastic Package

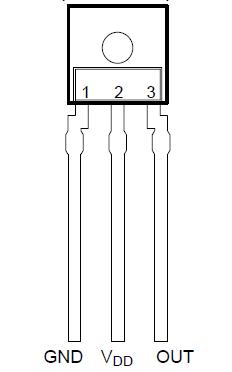

Pinout




Specifications

Supply voltage, V_DD (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 V
Output current, I_O . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . ±10 mA
Duration of short-circuit current at (or below) 25°C . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . 5 s
Operating free-air temperature range, T_A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . 25°C to 85°C
Storage temperature range, T_stg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25°C to 85°C
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 240°C

† Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
NOTE 1: All voltages are with respect to GND.


Description

The TSLB257, TSLG257, and TSLR257 are high-sensitivity low-noise light-to-voltage optical converters that incorporate onboard blue, green, and red optical filters, respectively. These devices combine a photodiode and a transimpedance amplifier on a single monolithic CMOS integrated circuit with a color filter over the photodiode. Output voltage is directly proportional to light intensity (irradiance) on the photodiode. The TSLB257 has a transimpedance gain of 320 MW with improved  offset voltage stability and low power consumption, and is supplied in a 3-lead clear plastic sidelooker package with an integral lens.

The TSLB257 is ideal for applications such as colorimetry, printing process control, display color correction, and selectively ambient light detection or rejection.
