TSL254

Features:

Monolithic Silicon IC Containing Photodiode, Operational Amplifier, and Feedback Components
Converts Light Intensity to Output Voltage
High Irradiance Responsivity . . . Typically 60 mV/(W/cm2) at _p = 880 nm (TSL253)
High Bandwidth
Compact 3-Leaded Clear Plastic Package
Low Dark (Offset) Voltage . . . 10 mV Max At 25°C, V_DD = 5 V
Single-Supply Operation
Wide Supply-Voltage Range . . . 2.7 V to 5.5 V
Low Supply Current . . . 600 A Typical at V_DD = 5 V

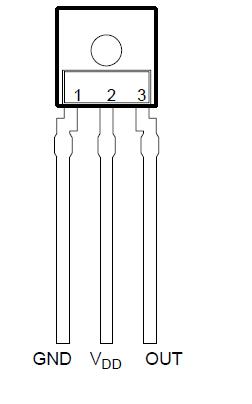

Pinout




Specifications

Supply voltage, V_DD (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 V
Output current, I_O . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±10 mA
Duration of short-circuit current at (or below) 25°C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 s
Operating free-air temperature range, T_A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25°C to 85°C
Storage temperature range, T_stg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25°C to 85°C
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds . . . . . . . . . . .  . . . . . . . . . . . . . . . . . . . . . . . . 240°C

† Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
NOTE 1: All voltages are with respect to GND.


Description
