TSL210

Peak Wavelength :
Operating Supply Voltage :
Supply Current :
Mounting Style :
Package / Case :
Maximum Operating Temperature : + 70 C
Minimum Operating Temperature : 0 C
Packaging : Tray


Features:

640 * 1 Sensor-Element Organization
200 Dots-Per-Inch (DPI) Sensor Pitch
High Linearity and Uniformity
Wide Dynamic Range . . . 2000:1 (66 dB)
Output Referenced to Ground
Low Image Lag . . . 0.5% Typ
Operation to 5 MHz
Single 5-V Supply

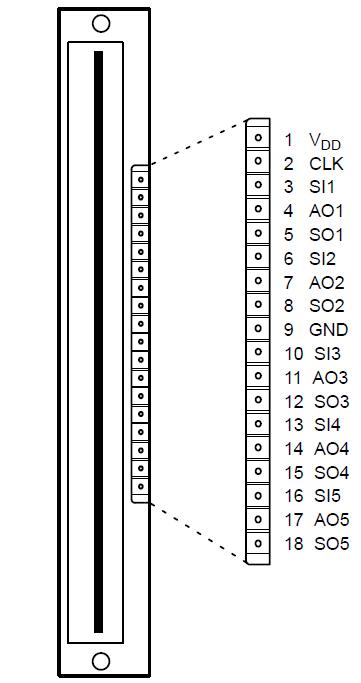

Pinout




Specifications

Supply voltage range, V_DD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to 6 V
Input voltage range, V_I . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to V_DD + 0.3V
Input clamp current, I_IK (V_I < 0 or V_I > V_DD) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 mA to 20 mA
Output clamp current, I_OK (V_O < 0 or V_O > V_DD) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 mA to 25 mA
Voltage range applied to any output in the high impedance or power-off state, V_O . . . . . . . . . . 0.3 V to V_DD + 0.3V
Continuous output current, I_O (V_O = 0 to V_DD) . . . . . . . . . . . . . . . . . . . . . . . . . . .  . .. . . . . . . . . . . . 25 mA to 25 mA
Continuous current through V_DD or GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . 100 mA to 100 mA
Analog output current range, I_O . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 mA to 25 mA
Operating free-air temperature range, T_A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . 25°C to 85°C
Storage temperature range, T_stg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25°C to 85°C
Lead temperature on connection pad for 10 seconds . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 260°C
ESD tolerance, human body model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . . . . . . 2000 V

† Stresses beyond those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. These are stress ratings only, and
functional operation of the device at these or any other conditions beyond those indicated under "Recommended Operating Conditions" is not
implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.


Description

The TSL210 linear sensor array consists of five sections of 128 photodiodes, each with associated charge amplifier circuitry, running from a common clock. These sections can be connected to form a contiguous 640 × 1 pixel array. Device pixels measure 120 mm (H) by 70 mm (W) with 125-mm center-to-center pixel spacing. Operation is simplified by internal logic that requires only a serial input (SI1 through SI5) for each section and a common clock for the five sections.

The TSL210 is intended for use in a wide variety of applications including contact imaging, mark and code reading, bar-code reading, edge detection and positioning, OCR, level detection, and linear and rotational encoding.
