TSL208R

Operating Supply Voltage :
Supply Current :
Mounting Style :
Package / Case :
Peak Wavelength : 1000 nm
Maximum Operating Temperature : + 70 C
Minimum Operating Temperature : 0 C
Packaging : Tray


Features:

512 * 1 Sensor-Element Organization
200 Dots-Per-Inch (DPI) Sensor Pitch
High Linearity and Uniformity
Wide Dynamic Range . . . 2000:1 (66 dB)
Output Referenced to Ground
Low Image Lag . . . 0.5% Typ
Operation to 5 MHz
Single 5-V Supply
Replacement for TSL208

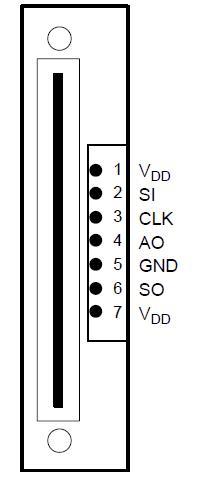

Pinout




Specifications

Supply voltage range, V_DD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to 6 V
Input voltage range, V_I . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to V_DD + 0.3V
Input clamp current, I_IK (V_I < 0 or V_I > V_DD) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 mA to 20 mA
Output clamp current, I_OK (V_O < 0 or V_O > V_DD) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . 25 mA to 25 mA
Voltage range applied to any output in the high impedance or power-off state, V_O . . . . .. . . . . 0.3 V to V_DD + 0.3V
Continuous output current, I_O (V_O = 0 to V_DD) . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . . 25 mA to 25 mA
Continuous current through V_DD or GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . 100 mA to 100 mA
Analog output current range, I_O . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . 25 mA to 25 mA
Operating free-air temperature range, T_A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25°C to 85°C
Storage temperature range, T_stg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . . . . . . . 25°C to 85°C
Lead temperature on connection pad for 10 seconds . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . . . . . . . . . . 260°C
ESD tolerance, human body model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2000 V

† Stresses beyond those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "Recommended Operating Conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.


Description

The TSL208R linear sensor array consists of a 512 × 1 array of photodiodes and associated charge amplifier circuitry. The pixels measure 120 mm (H) by 70 mm (W) with 125-mm center-to-center spacing and 55-mm spacing between pixels. Operation is simplified by internal control logic that requires only a serial-input (SI) signal and a clock.

The TSL208R is intended for use in a wide variety of applications including mark detection and code reading, optical character recognition (OCR) and contact imaging, edge detection and positioning as well as optical linear and rotary encoding.
