TSL1406RS

Operating Supply Voltage :
Supply Current :
Package / Case :
Peak Wavelength : 1000 nm
Maximum Operating Temperature : + 70 C
Minimum Operating Temperature : 0 C
Mounting Style : SMD/SMT
Packaging : Tray


Features:

768 * 1 Sensor-Element Organization
400 Dot-Per-Inch (DPI) Sensor Pitch
High Linearity and Uniformity
Wide Dynamic Range . . . 4000:1 (72 dB)
Output Referenced to Ground
Low Image Lag . . . 0.5% Typ
Operation to 8 MHz
Single 3-V to 5-V Supply
Rail-to-Rail Output Swing (AO)
No External Load Resistor Required
Replacement for TSL1406

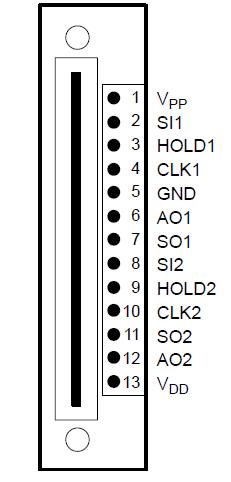

Pinout

Specifications

Supply voltage range, V_DD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to 6 V
Input voltage range, V_I . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to V_DD + 0.3V
Input clamp current, I_IK (V_I < 0) or (V_I > V_DD) . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . . . . . 20 mA to 20 mA
Output clamp current, I_OK (V_O < 0 or V_O > V_DD) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 mA to 25 mA
Voltage range applied to any output in the high impedance or power-off state, V_O . . . . . . . . 0.3 V to V_DD + 0.3 V
Continuous output current, I_O (V_O = 0 to V_DD) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 mA to 25 mA
Continuous current through V_DD or GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 mA to 40 mA
Analog output current range, I_O . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . 25 mA to 25 mA
Maximum light exposure at 638 nm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 mJ/cm²
Operating free-air temperature range, T_A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0°C to 70°C
Storage temperature range, T_stg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25°C to 85°C
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 260°C

† Stresses beyond those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "Recommended Operating Conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.


Description

The TSL1406RS is a 400 dots-per-inch (DPI) linear sensor array consisting of two 384-pixel sections, each with its own output. The sections are aligned to form a contiguous 768 × 1 pixel array. The device incorporates a pixel data-hold function that provides simultaneous integration-start and integration-stop times for all pixels.

Pixels measure 63.5 mm by 55.5 mm, with 63.5-mm center-to-center spacing and 8-mm spacing between pixels. Operation of TSL1406RS is simplified by internal logic that requires only a serial-input (SI) pulse and a clock.

The TSL1406RS operates from a single 5-V power source. The two sections of 384 pixels each can be read out separately or can be cascaded to provide a single output for all 768 pixels (see Figure 9).

The TSL1406RS is the same device mounted in a shorter package. The TSL1406RS is intended for use in a wide variety of applications including mark and code reading, OCR and contact imaging, edge detection and positioning, and optical encoding.
