TSL1401R

Operating Supply Voltage :
Supply Current :
Packaging :
Peak Wavelength : 1000 nm
Maximum Operating Temperature : + 70 C
Minimum Operating Temperature : 0 C
Mounting Style : Through Hole
Package / Case : PDIP-8


Features:

128 * 1 Sensor-Element Organization
400 Dots-Per-Inch (DPI) Sensor Pitch
High Linearity and Uniformity
Wide Dynamic Range . . . 4000:1 (72 dB)
Output Referenced to Ground
Low Image Lag . . . 0.5% Typ
Operation to 8 MHz
Single 3-V to 5-V Supply
Rail-to-Rail Output Swing (AO)
No External Load Resistor Required
Replacement for TSL1401

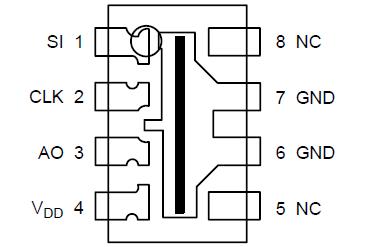

Pinout




Specifications

Supply voltage range, V_DD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to 6 V
Input voltage range, V_I . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to V_DD + 0.3V
Input clamp current, I_IK (V_I < 0) or (V_I > V_DD) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 mA to 20 mA
Output clamp current, I_OK (V_O < 0 or V_O > V_DD) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 mA to 25 mA
Voltage range applied to any output in the high impedance or power-off state, V_O . . . 0.3 V to V_DD + 0.3 V
Continuous output current, I_O (V_O = 0 to V_DD) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 mA to 25 mA
Continuous current through V_DD or GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 mA to 40 mA
Analog output current range, I_O . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 mA to 25 mA
Maximum light exposure at 638 nm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 mJ/cm2
Operating free-air temperature range, T_A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0°C to 70°C
Storage temperature range, T_stg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25°C to 85°C
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 260°C

† Stresses beyond those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "Recommended Operating Conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.


Description

The TSL1401R linear sensor array consists of a 128 × 1 array of photodiodes, associated charge amplifier circuitry, and an internal pixel data-hold function that provides simultaneous-integration start and stop times for all pixels. The pixels measure 63.5 mm (H) by 55.5 mm (W) with 63.5-mm center-to-center spacing and 8-mm spacing between pixels. Operation is simplified by internal control logic that requires only a serial-input (SI) signal and a clock.
