Features:

.1.5V to 5V OPERATING VOLTAGE
.28dB GAIN@3V @ 450MHz
.20dB GAIN@3V @ 900MHz
.+13.5dBmOUTPUT POWER (P1dB) BIAS PIN FOR CURRENT ADJUST &
.AMPLIFIER DISABLE
.ADJUSTABLE OUTPUT POWER
.50W INPUT/OUTPUTMATCHING
.FULLYGUARANTEED AT 2.7V

Pinout

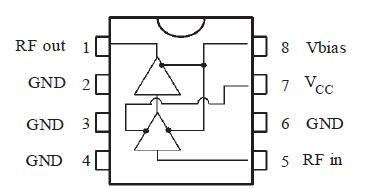

Connection Diagram

Specifications

Symbol	Parameter	Value	Unit
VCC1, VCC2, Vbias	Supply Voltage	5.5	V
RF in	RF Input Power	±10	dBm
RF out	RF Output Power	±21	dBm
Toper	Operating Free Air Temperature Range	-40 to +85
Tstg	Storage Temperature Range	-65 to +150

Description

TSH690 is a wide band RF amplifier, consisted of 2 stages, designed in advanced bipolar process featuring 28dB gain and +13.5dBm output power at 450MHzunder 3V. The pin 8 allows an external bias current adjust to tune the output power and also to set the amplifier in power-down mode. The TSH690 is dedicatedto equipsecuredRF data transmitters as antenna drivers in ISM band (reliable RF meter-reading systems, secured Remote Controls, Cordless Telephones, ...)
