TSH151

Features: .LOWDISTORTION .GAIN BANDWIDTH PRODUCT : 150MHz .UNITY GAIN STABLE .SLEWRATE : 200V/ms .VERY FAST SETTLING TIME : 70ns (0.1%) .VERY HIGH INPUT IMPEDANCEPinoutSpecifications Symbol Parameter Value Unit VCC Supply Voltage ±7 V Vid Differential Input Voltage ±5 V Vi ...

product image

TSH151 Picture
See larger image
SeekIC No. : 004529453 Detail

TSH151: Features: .LOWDISTORTION .GAIN BANDWIDTH PRODUCT : 150MHz .UNITY GAIN STABLE .SLEWRATE : 200V/ms .VERY FAST SETTLING TIME : 70ns (0.1%) .VERY HIGH INPUT IMPEDANCEPinoutSpecifications Symbol Pa...

TSH151 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TSH151
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

.LOWDISTORTION
.GAIN BANDWIDTH PRODUCT : 150MHz
.UNITY GAIN STABLE
.SLEWRATE : 200V/ms
.VERY FAST SETTLING TIME : 70ns (0.1%)
.VERY HIGH INPUT IMPEDANCE

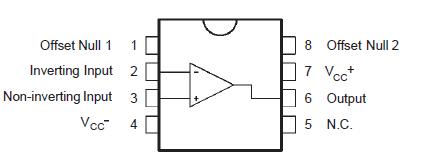

Pinout

Connection Diagram


Specifications

Symbol Parameter Value Unit
VCC Supply Voltage
 ±7 V
Vid Differential Input Voltage ±5 V
Vi Input Voltage Range ±5 V
Iin Current On Offset Null Pins ±20 mA
Toper Operating Free-Air Temperature Range
TSH151C
TSH151I		 0, 70
-40, 15



Description

The TSH151 is a wideband monolithic operational amplifier, internally compensatedfor unity-gainstability.

The TSH151 features extremely high input impedance (typically greater than 1012W) allowing direct interfacing with high impedance sources.

Low distortion, wide bandwidth and high linearity makes TSH151 suitable for RF and video applications.

Short circuit protection is provided by an internal current-limiting circuit.

The TSH151 has internal electrostatic discharge (ESD) protection circuits and fulfills MILSTD883CClass2.
