Product Details

Description



Features:

.LOWDISTORTION
.GAIN BANDWIDTH PRODUCT : 150MHz
.UNITY GAIN STABLE
.SLEWRATE : 190V/ms
.VERY FAST SETTLING TIME : 20ns (0.1%)

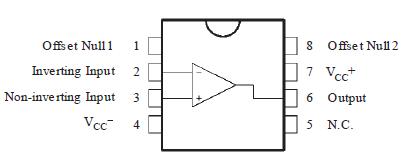

Pinout

Connection Diagram


Specifications

Symbol Parameter
Value
 Unit
VCC Supply Voltage
±7
 V
Vid Differential Input Voltage
±5
 V
Vi Input Voltage Range
±5
 V
Iin Current On Offset Null Pins
±20
 mA
Toper Operating Free-Air Temperature Range
TSH150C
TSH150I
0 to +70
-40 to +125
Tstg Storage Temperature Range
-65 to 150



Description

The TSH150 is a wideband monolithic operational amplifier, internally compensated for unity-gain stability.

Low noise and low distortion, TSH150, wide bandwidth and high linearitymake thisamplifier suitable forRFand video applications. Short circuit protection is provided by an internal current-limiting circuit.

The TSH150 has internal electrostatic discharge (ESD) protection circuits and fulfills MILSTD883CClass2.
