TSC2102

Features:

4-Wire Touch Screen Interface
Integrated Touch Screen Processor With Fully Automated Modes of Operation
Programmable Converter Resolution, Speed, and Averaging
Programmable Autonomous Timing Control
Direct Battery Measurement
On-Chip Temperature Measurement
Stereo Audio Playback Up to 48 ksps
97-dB Stereo Audio Playback
Integrated PLL for Audio Clock Generation
Programmable Digital Audio Effects Processing
Stereo Headphone Amplifier
SPI™ Serial Interface
Glueless Interface With OMAP™ and Xscale™ Processors
Full Power-Down Control
Low Power: 11-mW Stereo Audio Playback
32-Pin TSSOP Package


Application

Personal Digital Assistants
Smart Cellular Phones
MP3 Players

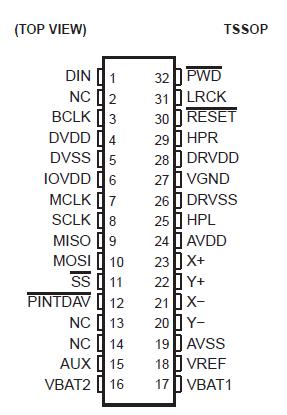

Pinout




Specifications

		UNITS
AVDD to AVSS		−0.3 V to 3.9 V
DRVDD to DRVSS		−0.3 V to 3.9 V
IOVDD to DVSS		−0.3 V to 3.9 V
DVDD to DVSS		−0.3 V to 2.5 V
Digital input voltage to GND		−0.3 V to IOVDD + 0.3 V
Operating temperature range		−40°C to 85°C
Storage temperature range		−65°C to 105°C
Junction temperature (TJ Max)		105°C
TSSOP package	Power dissipation	(TJ Max − TA)/JA
	JA Thermal impedance	60°C/W
Lead temperature	Soldering vapor phase (60 sec)	215°C
	Infrared (15 sec)	220°C

(1) Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.


Description

The TSC2102 is a highly integrated combination resistive touch screen controller with on-chip processor and audio DAC. The touch screen portion of the TSC2102 contains a 12-bit 4-wire resistive touch screen converter complete with drivers, and interfaces to the host controller through a standard SPI™ serial interface. The on-chip processor provides extensive features specifically designed to  reduce host processor and bus overhead, with capabilities that include fully automated operating modes, programmable conversion resolution up to 12 bits, programmable sampling rates up to 125 kHz, programmable conversion averaging, and programmable on-chip timing generation.

The TSC2102 also features a high-performance audio DAC with 16, 20, 24, or 32-bit stereo playback functionality at up to 48 ksps. The stereo output drivers on the TSC2102 can be programmed for headphone drive or line-level drive, and support capless as well as ac-coupled output configurations. The digital audio data format is programmable to work with popular audio standard protocols (I2S, DSP, left/right justified) in master or slave mode, and also includes an on-chip PLL for flexible clock generation capability.

The TSC2102 offers two battery measurement inputs capable of reading battery voltages up to 6 V, while operating at only 2.7 V. It also has an on-chip temperature sensor capable of reading 0.3°C resolution. The TSC2102 is available in a 32-lead TSSOP.
