TSC2101

Features:

Stereo Audio Playback Up to 48 ksps
Mono Audio Record up to 48 ksps
Integrated PLL for Audio Clock Generation
Programmable Gain Amplifiers
Hardware Automatic Gain Control
Programmable Digital Audio Effects Processing
Stereo Headset Interface
Cellular Headset Interface
8- Speaker Driver
32- Receiver Driver
Interface with Microphone
Auto-Detection of Headset and Button Press
Supports Both Cap and Cap-Less Interface for Headset
Programmable Audio Routing
4-Wire Touch Screen Interface
Integrated Touch Screen Processor With Fully Automated Modes of Operation
Programmable Converter Resolution, Speed, and Averaging
Programmable Autonomous Timing Control
Direct Battery Measurement
Built-In Buffer for Touch Screen Data
SPI™ Serial Interface
Low Power
Full Power-Down Control
48-Pin QFN Package


Application

Personal Digital Assistants
Smart Cellular Phones
MP3 Players

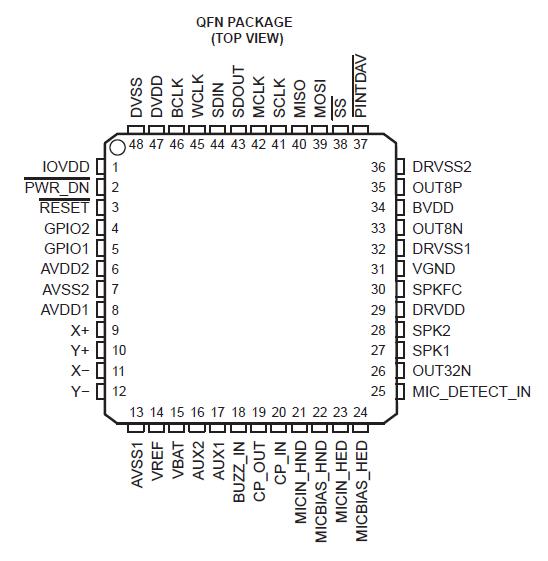

Pinout




Specifications

		UNITS
AVDD1/2 to AVSS 1/2		−0.3 V to 3.9 V
DRVDD to DRVSS 1/2		−0.3 V to 3.9 V
BVDD to DRVSS1/2		−0.3 V to 4.5 V
IOVDD to DVSS		−0.3 V to 3.9 V
Digital input voltage to DVSS		−0.3 V to IOVDD + 0.3 V
Analog inputs (except VBAT) to AVSS 1/2		−0.3 V to AVDD + 0.3 V
VBAT input voltage to AVSS1/2		−0.3 V to 6 V
AVSS1/2 to DRVSS1/2 to DVSS		−0.1 V to 0.1 V
AVDD1/2 to DRVDD		−0.1 V to 0.1 V
Operating temperature range		−40°C to 85°C
Storage temperature range		−65°C to 105°C
Junction temperature (TJ Max)		105°C
QFN package	Power dissipation	(TJ Max − TA)/JA
	JA Thermal impedance	27°C/W
Lead temperature	Infrared (15 sec)	240°C

(1) Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
(2) If the TSC2101 is used to drive high power levels to an 8- load for extended intervals at an ambient temperature above 80°C, multiple vias should be used to electrically and thermally connect the thermal pad on the QFN package to an internal heat dissipating ground plane on the user's PCB.


Description

The TSC2101 is a low-power highly integrated high performance codec and touch screen controller, which supports stereo audio DAC, mono audio ADC and SAR ADC.

The TSC2101 features a high-performance audio codec with 16, 20, 24, or 32-bit stereo playback, mono record functionality at up to 48 ksps. The device integrates several analog features such as support for headset interface, cellular headset interface, microphone interface, and speaker and receiver drivers. The device supports auto detection of headset and button press without any glue logic. The TCS2101 has fully programmable audio. The digital audio data format is programmable to work with popular audio standard protocols (I2S, DSP, left/right justified) in master or slave mode, and also includes an on-chip PLL for flexible clock generation capability.

The TSC2101 contains a 12-bit 4-wire resistive touch screen converter complete with drivers, and interfaces to the host controller through a standard SPI™ serial interface. The on-chip processor provides extensive features specifically designed to reduce host processor and bus overhead, with capabilities that include fully automated operating modes, programmable conversion resolution up to 12 bits, programmable sampling rates up to 125 kHz, programmable conversion averaging, and programmable on-chip timing generation.

The TSC2101 offers battery measurement inputs capable of reading battery voltages up to 6 V, while operating at only 3 V. It also has an on-chip temperature sensor capable of reading 0.3°C resolution. The TSC2101 is available in a 48-lead QFN.
