TSB41LV06

`Fully Supports Provisions of IEEE 13941995 Standard for High Performance Serial Bus† and the P1394a Supplement (Draft 2.0)
`Full P1394a Support Includes: Connection Debounce, Arbitrated Short Reset, Multispeed concatenation, Arbitration Acceleration, Fly-by Concatenation, Port Disable/Suspend/Resume
`Provides Six P1394a Fully Compliant Cable Ports at 100/200/400 Megabits per Second (Mbits/s)
`Cable Ports Monitor Line Conditions for Active Connection to Remote Node
`Power-Down Features to Conserve Energy in Battery Powered Applications include:Automatic Device Power-Down during Suspend, Device Power-Down Pin, Link Interface Disable via LPS, and Inactive Ports Powered Down
`Logic Performs System Initialization and Arbitration Functions
`Encode and Decode Functions Included for Data-Strobe Bit Level Encoding
`Incoming Data Resynchronized to Local Clock
`Single 3.3 V Supply Operation
`Interface to Link Layer Controller Supports Low Cost TIE Bus-Holder Isolation and Optional Annex J Electrical Isolation
`Data Interface to Link-Layer Controller Through 2/4/8 Parallel Lines at 49.152 MHz
`Low Cost 24.576-MHz Crystal Provides Transmit, Receive Data at 100/200/400 Mbits/s, and Link-Layer Controller Clock at 49.152 MHz
`Interoperable with Link-Layer Controllers Using 3.3-V and 5-V Supplies
`Interoperable with Other Physical Layers (PHY) Using 3.3-V and 5-V Supplies
`Node Power Class Information Signaling for System Power Management
`Cable Power Presence Monitoring
`Separate Cable Bias (TPBIAS) for Each Port
`Register Bits Give Software Control of Contender Bit, Power Class Bits, Link Active Bit and P1394a Features
`Fully Interoperable with FIreWireE and i.LINKE Implementation of IEEE Std 1394
`Low Cost, High Performance 100 Pin TQFP (PZP) Thermally Enhanced Package

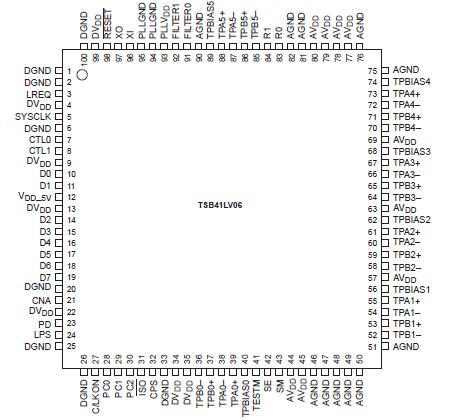

The TSB41LV06 provides the digital and analog transceiver functions needed to implement a six-port node in
a cable-based IEEE 1394 network. Each cable port incorporates two differential line transceivers. The transceivers include circuitry to monitor the line conditions as needed for determining connection status, for initialization and arbitration, and for packet reception and transmission. The TSB41LV06 is designed to interface with a Link Layer Controller (LLC), such as the TSB12LV22, TSB12LV21, TSB12LV31, TSB12LV41, or TSB12LV01.

The TSB41LV06 requires only an external 24.576 MHz crystal as a reference. An external clock may be provided instead of a crystal. An internal oscillator drives an internal phase-locked loop (PLL), which generates the required 393.216 MHz reference signal. This reference signal is internally divided to provide the clock signals used to control transmission of the outbound encoded Strobe and Data information. A 49.152 MHz clock signal is supplied to the associated LLC for synchronization of the two chips and is used for resynchronization of the received data. The power-down (PD) function, when enabled by asserting the PD terminal high, stops operation of the PLL.

The TSB41LV06 supports an optional isolation barrier between itself and its LLC. When the ISO input terminal is tied high, the LLC interface outputs behave normally. When the ISO terminal is tied low, internal differentiating logic is enabled, and the outputs are driven such that they can be coupled through a capacitive or transformer galvanic isolation barrier as described in IEEE 1394a section 5.9.4. To operate with TI Bus Holder isolation the ISO on the PHY terminal must be tied HIGH.

Data bits to be transmitted through the cable ports are received from the LLC on two, four or eight parallel paths (depending on the requested transmission speed) and are latched internally in the TSB41LV06 in synchronization with the 49.152 MHz system clock. These bits are combined serially, encoded, and transmitted at 98.304, 196.608, or 392.216 Mbits/s (referred to as S100, S200, and S400 speed, respectively) as the outbound data-strobe information stream. During transmission, the encoded data information is transmitted differentially on the TPB cable pair(s), and the encoded strobe information is transmitted differentially on the TPA cable pair(s).

During packet reception the TPA and TPB transmitters of the receiving cable port are disabled, and the receivers for that port are enabled. The encoded data information is received on the TPA cable pair, and the encoded strobe information is received on the TPB cable pair. The received data-strobe information is decoded to recover the receive clock signal and the serial data bits. The serial data bits are split into two, four or eight bit parallel streams (depending upon the indicated receive speed), resynchronized to the local 49.152 MHz system clock and sent to the associated LLC. The received data is also transmitted (repeated) on the other active (connected) cable ports.

Both the TPA and TPB cable interfaces incorporate differential comparators of the TSB41LV06 to monitor the line states during initialization and arbitration. The outputs of these comparators are used by the internal logic to determine the arbitration status. The TPA channel monitors the incoming cable common-mode voltage. The value of this common-mode voltage is used during arbitration to set the speed of the next packet transmission. In addition, the TPB channel monitors the incoming cable common-mode voltage on the TPB pair for the presence of the remotely supplied twisted-pair bias voltage.

The TSB41LV06 provides a 1.86 V nominal bias voltage at the TPBIAS terminal for port termination. The PHY contains two independent TPBIAS circuits. This bias voltage, when seen through a cable by a remote receiver, indicates the presence of an active connection. This bias voltage source must be stabilized by an external filter capacitor of 1 mF.

The line drivers in the TSB41LV06 operate in a high-impedance current mode, and are designed to work with external 110 W line-termination resistor networks in order to match the 110-W cable impedance. One network is provided at each end of a twisted-pair cable. Each network is composed of a pair of series-connected 56-W resistors. The midpoint of the pair of resistors that is directly connected to the twisted pair A terminals is connected to its corresponding TPBIAS voltage terminal. The midpoint of the pair of resistors that is directly connected to the twisted-pair B terminals is coupled to ground through a parallel R-C network with recommended values of 5 kW and 220 pF. The values of the external line termination resistors are designed to meet the standard specifications when connected in parallel with the internal receiver circuits. An external resistor connected between the R0 and R1 terminals sets the driver output current, along with other internal operating currents. This current setting resistor has a value of 6.3-kW ±0.5%. This may be accomplished by placing a 6.34-kW ±0.5% resistor in parallel with a 1-MW resistor.

When the power supply of the TSB41LV06 is 0 V while the twisted-pair cables are connected, the TSB41LV06 transmitter and receiver circuitry will present a high impedance to the cable and will not load the TPBIAS voltage
at the other end of the cable.
