TSA6060

Features: · On-chip AM and FM prescalers with high input sensitivity· On-chip high-performance one-input-two-output, tuning voltage amplifier for the AM and FM loop filters· On-chip two-level current amplifier (charge pump) for loop gain adjustment· One reference oscillator (4 or 8 MHz) for both A...

product image

TSA6060 Picture
See larger image
SeekIC No. : 004529101 Detail

TSA6060: Features: · On-chip AM and FM prescalers with high input sensitivity· On-chip high-performance one-input-two-output, tuning voltage amplifier for the AM and FM loop filters· On-chip two-level curren...

TSA6060 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TSA6060
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· On-chip AM and FM prescalers with high input sensitivity
· On-chip high-performance one-input-two-output, tuning voltage amplifier for the AM and FM loop filters
· On-chip two-level current amplifier (charge pump) for loop gain adjustment
· One reference oscillator (4 or 8 MHz) for both AM and FM
· High-speed tuning provided by a powerful digital memory phase detector
· 40 kHz output reference frequency for communication between the FM/IF system and microcontroller-based tuning interface IC (TEA6100)
· Oscillator frequency range of 500 kHz to 30 MHz and 30 MHz to 200 MHz
· Four selectable reference frequencies: 1, 10, 25 or 50 kHz, for both tuning ranges
· I2C-bus interface to a microcontroller
· Software controlled band switch output
· In-lock detector output.


Application

· FM mains and car radios
· VHF receivers 30 to 200 MHz.


Pinout

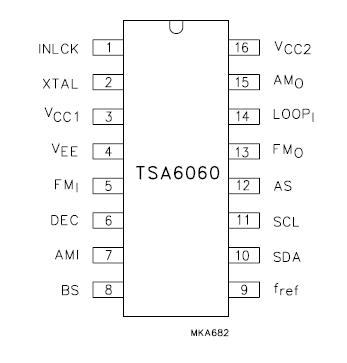

Connection Diagram


Specifications

SYMBOL
 PARAMETER CONDITIONS
MIN.
MAX.
UNIT
VCC1
 supply voltage (pin 3)
-0.3
+6
V
VCC2
 supply voltage (pin 16)
VCC1 + 1
12.5
V
VXTAL
 crystal bias voltage
1/2 VCC1
VCC1
V
Ptot
 total power dissipation
-
850
mW
Tamb
 operating ambient temperature
-40
+85
Tstg
 IC storage temperature
-65
+150
Ves
 electrostatic handling note 1
-200
+200
V
Note
1. Classification: machine model; C = 200 pF; R = 0 ; V = ±200 V.


Description

The TSA6060 is a frequency synthesizer manufactured in SUBILO-N technology (components laterally separated by oxide). The device performs all the tuning functions of a PLL radio tuning system.

The IC is designed for application in all types of radio receivers.
