TS971

Features: `RAIL TO RAIL OUTPUT VOLTAGESWING .(±2.4V@ VCC = ±2.5V) .`VERYLOW NOISE LEVEL : 4nV HZ .`ULTRA LOWDISTORTION : 0.003% .`HIGHDYNAMIC FEATURES (12MHz, 4V/ms) .`OPERATINGRANGE : 2.7V to 12V .ESD PROTECTION (2kV) .`LATCH-UP IMMUNITY `AVAILABLEIN SOT23-5 MICROPACKAGEApplication·Portable equip...

product image

TS971 Picture
See larger image
SeekIC No. : 004529061 Detail

TS971: Features: `RAIL TO RAIL OUTPUT VOLTAGESWING .(±2.4V@ VCC = ±2.5V) .`VERYLOW NOISE LEVEL : 4nV HZ .`ULTRA LOWDISTORTION : 0.003% .`HIGHDYNAMIC FEATURES (12MHz, 4V/ms) .`OPERATINGRANGE : 2.7V to 12V ....

TS971 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TS971
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`RAIL TO RAIL OUTPUT VOLTAGESWING .(±2.4V@ VCC = ±2.5V) .
`VERYLOW NOISE LEVEL : 4nV HZ .
`ULTRA LOWDISTORTION : 0.003% .
`HIGHDYNAMIC FEATURES (12MHz, 4V/ms) .
`OPERATINGRANGE : 2.7V to 12V .ESD PROTECTION (2kV) .
`LATCH-UP IMMUNITY
`AVAILABLEIN SOT23-5 MICROPACKAGE


Application

·Portable equipments (CD players, PDA) .
·Portable communications (cell phones, pagers) .
·Instrumentation& sensoring
·Professional audio circuits


Pinout

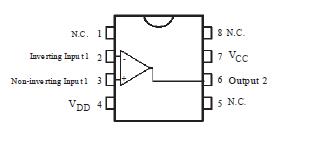

Connection Diagram


Specifications

Symbol
 Parameter
Value
Unit
VCC
 Supply voltage 1)
12
V
Vid
 Differential Input Voltage 2)
±VCC
V
Vin
 Input Voltage Range 3)
-0.3 to 12.3
V
Toper
 Operating Free Air Temperature Range
-40 to + 125
Tstd
 Storage Temperature Range
-65 to +150
Tj
 Maximum Junction Temperature
150
Rthjc
 Thermal Resistance Junction to Case 4)
SOT23-5
DIP8
DIP14
SO8
SO14
TSSOP8
TSSOP14
81
28
22
26
21
/W
Rthjc
 Thermal Resistance Junction to Ambient
256
/W
ESD
 Human Body Model
2
KV
  Lead Temperature (soldering, 10sec)
260
Notes:
1. All voltages values, except differential voltage are with respect to network ground terminal.
2. Differential voltages are non-inverting input terminal with respect to the inverting input terminal.
3. The magniture of input and output voltages must never exceed VCC +0.3V.
4. Short-circuits can cause excessive heating and destructive dissipation.


Description

The TS971 family operational amplifiers is able to operate with voltages as low as ±1.35V and featuring output Rail to Rail signal swing. The TS97x boasts characteristics that make them particularly well suited for portable and battery-supplied equipment. Very low noise and low distortion character ist ics make them ideal for audio pre-amplification.

The TS971 is housed in the space-saving 5 pins SOT23 package which simplifies the board design because of the ability to be placed everywhere (outside dimensions are 2.8mm x 2.9mm)
