Features:

· RAIL TO RAIL OUTPUT VOLTAGE SWING
· MICROPOWER CONSUMPTION (1.2mA)
·SINGLE SUPPLY OPERATION (2.7V to 10V)
·CMOS INPUTS
· ULTRA LOW INPUT BIAS CURRENT (1pA)
· ESD PROTECTION (2kV)
· LATCH-UP IMMUNITY (Class A)
·AVAILABLE IN SOT23-5 MICROPACKAGE


Application

· Battery-powered systems (Alarm)
· Portable communication systems (Pagers)
· Smoke/gas/fire detectors
· Instrumentation & sensoring
· PH Meter


Pinout

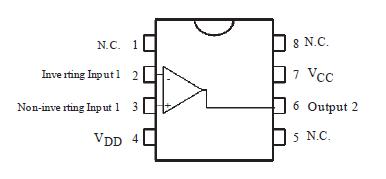

Connection Diagram


Specifications

Symbol
 Parameter
Value
Unit
VCC
 Supply voltage 1)
12
V
Vid
 Differential Input Voltage 2)
±12
V
Vin
 Input Voltage Range 3)
-0.3 to 12.3
V
Toper
 Operating Free Air Temperature Range
-40 to + 85
Tstd
 Storage Temperature Range
-65 to +150
Tj
 Maximum Junction Temperature
150
Rthjc
 Thermal Resistance Junction to Case 4)
SOT23-5
DIP8
DIP14
SO8
SO14
TSSOP8
TSSOP14
81
42
32
28
22
26
21
/W
Rthjc
 Thermal Resistance Junction to Ambient - SOT23-5
256
/W
ESD
 Human Body Model
2
KV
  Latch-up Immunity
Class A
  Lead Temperature (soldering, 10sec)
260
1. All voltages values, except differential voltage are with respect to network terminal.
2. Differential voltages are non-inverting input terminal with respect to the inverting input terminal.
3. The magnitude of input and output voltages must never exceed VCC +0.3V.
4. Short-circuits can cause excessive heating and destructive dissipation.


Description

The TS941(Single, Dual & Quad) is Operational Amplifier characterized for 2.7V to 10V operation over -40°C to +85°C temperature range.

It is exhibiting an excellent consumption - 1.2mA, while featuring 10kHz gain bandwidth product, 1.5mA output capability and output Rail to Rail operation
- 2.85V typ@ 3V with RL=10k.

The TS941 Op-Amp is ideal for battery-powered systems, where very low supply current and output Rail to Rail are required. Its very low - 1pA typ input bias current and constant supply current over supply voltage enhance TS94x's performance near the end of the life battery charge.
