Features:

`RAIL TO RAIL INPUT AND OUTPUT
`LOWNOISE : 9nV Hz .
`LOWDISTORTION HIGH OUTPUT CURRENT : 80mA .(able to drive 32W loads) .
`HIGH SPEED : 4MHz 1.3V/s .
`OPERATINGFROM 2.7V to 12V
`LOW INPUT OFFSET VOLTAGE :.900mV max. (TS924A) .
`ESD INTERNAL PROTECTION : 2KV .
`LATCH-UP IMMUNITY
`MACROMODEL INCLUDED IN THIS SPECIFICATION




Application

·headphoneamplifier .
·piezoelectric speaker driver .
·sound cards .
·MPEG boards, multimedia systems, ... .
·line driver, buffer
·cordless telephones and portable communica. tion equipment
·instrumentation with low noise as key factor




Pinout

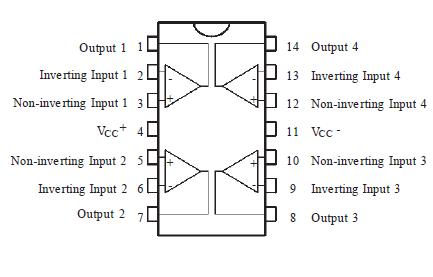

Connection Diagram


Specifications

Symbol
 Parameter
Value
Unit
VCC
 Supply Voltage - (note 1)
14
V
Vid
 Differential Input Voltage - (note 2)
±1
V
Vi
 Input Voltage - (note 3)
-0.3 to 14
V
Toper
 Operating Free Air Temperature Range
-40 to +125
Tj
 Maximum Junction Temperature
150
Rthja
 Thermal Resistance Junction to Ambient
130
/W
  Output Short Circuit Duration
see note 4
Notes :
1. All voltage values, except differential voltage are with respect to network ground terminal.
2. Differential voltages are the non-inverting input terminal with respect to the inverting input terminal.
3. The magnitude of input and output voltages must never exceed VCC + +0.3V.
4. Short-circuits can cause excessive heating. Destructive dissipation can result from simultaneous short-circuit on all amplifiers.


Description

The TS924 is a RAIL TO RAIL quad BiCMOS operational amplifier optimized and fully specified for 3V and 5V operation.

High output current allows low load impedances to be driven.

The TS924exhibitsa very low noise, low distortion, low offsetand high output current capabilitymaking this device an excellent choice for high quality, low
voltage or battery operated audio systems. The device is stable for capacitive loads up to 500pF.
