TS922

Features: `RAIL TO RAIL INPUT AND OUTPUT .`LOWNOISE : 9nV(HZ ) .`LOWDISTORTION `HIGH OUTPUT CURRENT : 80mA .(able to drive 32loads) .`HIGH SPEED : 4MHz, 1.3V/ms .O`PERATINGFROM 2.7V to 12V LOW INPUT OFFSET VOLTAGE : 900V max .(TS922A) .`ESD INTERNAL PROTECTION : 2KV .`LATCH-UP IMMUNITY `MACROMODEL...

product image

TS922 Picture
See larger image
SeekIC No. : 004529048 Detail

TS922: Features: `RAIL TO RAIL INPUT AND OUTPUT .`LOWNOISE : 9nV(HZ ) .`LOWDISTORTION `HIGH OUTPUT CURRENT : 80mA .(able to drive 32loads) .`HIGH SPEED : 4MHz, 1.3V/ms .O`PERATINGFROM 2.7V to 12V LOW INPUT...

TS922 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TS922
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`RAIL TO RAIL INPUT AND OUTPUT .
`LOWNOISE : 9nV(HZ ) .
`LOWDISTORTION
`HIGH OUTPUT CURRENT : 80mA .(able to drive 32loads) .
`HIGH SPEED : 4MHz, 1.3V/ms .O
`PERATINGFROM 2.7V to 12V LOW INPUT OFFSET VOLTAGE : 900V max .(TS922A) .
`ESD INTERNAL PROTECTION : 2KV .
`LATCH-UP IMMUNITY
`MACROMODEL INCLUDED IN THIS SPECIFICATION


Application

·headphoneamplifier .
·piezoelectric speaker driver .
·sound cards, multimedia systems .line driver, actuator driver .
·servo amplifier .
·mobile phone and portable equipment
· instrumentation with low noise as key factor


Pinout

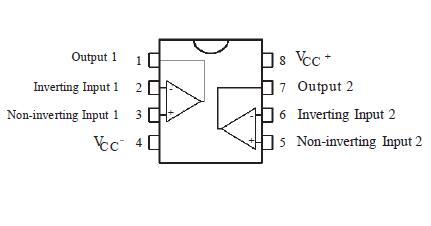

Connection Diagram


Specifications

Symbol
 Parameter
Value
Unit
VCC
 Supply Voltage - (note 1)
14
V
Vid
 Differential Input Voltage - (note 2)
±1
V
Vi
 Input Voltage - (note 3)
-0.3 to 14
V
Toper
 Operating Free Air Temperature Range
-40 to +125
Tstg
 Storage Temperature
-65 to +150
Tj
 Maximum Junction Temperature
150
Output Short Circuit Duration
see note 4
Notes :
1. All voltage values, except differential voltage are with respect to network ground terminal.
2. Differential voltages are the non-inverting input terminal with respect to the inverting input terminal.
3. The magnitude of input and output voltages must never exceed VCC+ +0.3V.
4. Short-circuits can cause excessive heating. Destructive dissipation can result from simultaneous short-circuit on all amplifiers.


Description

The TS922 is a RAIL TO RAIL dual BiCMOS operational amplifier optimized and fully specified for 3V and 5V operation.

High output current allows low load impedances to be driven.

The TS922exhibitsa very low noise, low distortion, low offsetand high output current capabilitymaking this device an excellent choice for high quality, low
voltage or battery operated audio systems.

The device is stable for capacitive loads up to 500pF.
