Product Details

Description

Features:

1.225V TYP OUTPUT VOLTAGE
ULTRA LOW OPERATING CURRENT : 40mA
   typ.
HIGH PRECISION @25
   +/-2% (Standard version)
   +/-1% (A grade)
+/-0.5% (B grade)
HIGH STABILITYWHEN USED WITH CAPACITIVE LOADS
WIDE TEMPERATURE RANGE : -40 to +85
T092 & SOT23-3 PACKAGES

Application

Computers
Instrumentation
Battery chargers
Switch Mode Power Supply
Battery operated equipements

Pinout

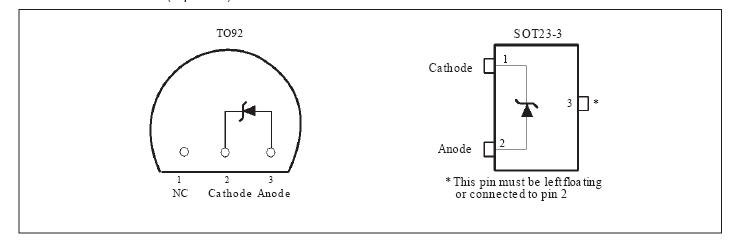

Connection Diagram

Specifications

Symbol	Parameter	Value	Units
I_k	Reverse Breakdown Current	20	mA
I_f	Forward Current	10	mA
P_d	Power Dissipation SOT23-3 TO92	360 625	mW
T_oper	Operating Free Air Temperature Range	-40 to +85	°C
T_stg	Storage Temperature	-65 to +150	°C

Note : P_d has been calculated with T_amb = 25 and T_j= 125 and
R_thja = 200/W for TO92 package
R_thja= 340/W for SOT23 package

Description

TheTS821 is a micropowerintegrated circuit which is a high stability, two terminals, band gap reference providing a stable output voltage over the industrial temperature range (-40 to +85oC). The minimum operating current is guaranteed at 50mA over the full operating temperature range.
