Features:

`LOW NOISE : 3nV Hz , 1.2pA Hz
`HIGH OUTPUT CURRENT : 200mA
` VERY LOW HARMONIC AND INTERMODULATION DISTORTION
` HIGH SLEW RATE : 40V/ms
` SPECIFIED FOR 25W LOAD


Application

· UPSTREAM line driver for Assymetric Digital Subscriber Line (ADSL) (NT).


Pinout

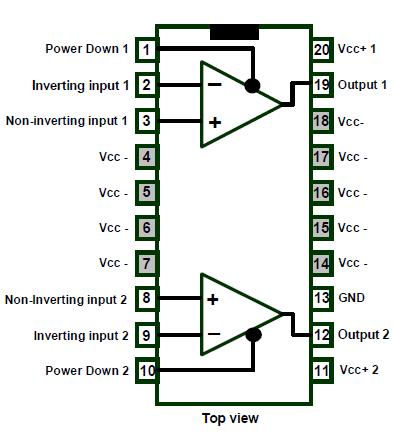

Connection Diagram


Specifications

Symbol
 Parameter
Value
Unit
VCC
 Supply voltage 1)
±7
V
Vid
 Differential Input Voltage 2)
±2
V
Vin
 Input Voltage Range 3)
±6
V
Toper
 Operating Free Air Temperature Range TS634TS634ID
-40 to +85
°C
Tstd
 Storage Temperature
-65 to +150
°C
Tj
 Maximum Junction Temperature
150
°C
Rthjc
 Thermal Resistance Junction to Case
25
°C/W
Rthjc
 Thermal Resistance Junction to Ambient Area
45
°C/W
Pmax.
 Maximum Power Dissipation (@25°C)
2.6
W
  Output Short Circuit Duration
4)

1. All voltages values, except differential voltage are with respect to network terminal.
2. Differential voltages are non-inverting input terminal with respect to the inverting input terminal.
3. The magnitude of input and output voltages must never exceed VCC +0.3V.
4. An output current limitation protects the circuit from transient currents. Short-circuits can cause excessive heating.
    Destructive dissipation can result from short circuit on amplifiers.


Description

The TS612 is a dual operational amplifier featuring a high output current (200mA min.), large gain-bandwidth product (130MHz) and capable of driving a 25W load with a 160mA output current at ±6V power supply.

This device is particularly intended for applications where multiple carriers must be amplified simultaneously with very low intermodulation products.

The TS612 is housed in SO20 batwing plastic package for a very low thermal resistance. The TS612 is fitted out with Power Down function in order to decrease the consumption.
