TS5A3359

Features: ` Isolation in the Power-Down Mode, V+ = 0` Specified Break-Before-Make Switching` Low ON-State Resistance (1)` Control Inputs Are 5.5-V Tolerant` Low Charge Injection` Excellent ON-State Resistance Matching` Low Total Harmonic Distortion (THD)` 1.65-V to 5.5-V Single-Supply Operation` L...

product image

TS5A3359 Picture
See larger image
SeekIC No. : 004528835 Detail

TS5A3359: Features: ` Isolation in the Power-Down Mode, V+ = 0` Specified Break-Before-Make Switching` Low ON-State Resistance (1)` Control Inputs Are 5.5-V Tolerant` Low Charge Injection` Excellent ON-State ...

TS5A3359 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TS5A3359
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Isolation in the Power-Down Mode, V+ = 0
` Specified Break-Before-Make Switching
` Low ON-State Resistance (1)
` Control Inputs Are 5.5-V Tolerant
` Low Charge Injection
` Excellent ON-State Resistance Matching
` Low Total Harmonic Distortion (THD)
` 1.65-V to 5.5-V Single-Supply Operation
` Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
` ESD Performance Tested Per JESD 22
  − 2000-V Human-Body Model (A114-B, Class II)
  − 1000-V Charged-Device Model (C101)


Application

· Cell Phones
· PDAs
· Portable Instrumentation
· Audio and Video Signal Routing
· Low-Voltage Data Acquisition Systems
· Communication Circuits
· Modems
· Hard Drives
· Computer Peripherals
· Wireless Terminals and Peripherals


Pinout

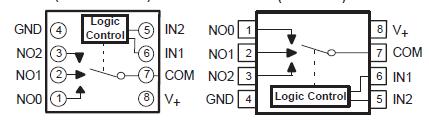

Connection Diagram
