TS5A3160

Features: ` Isolation in the Powered-Off Mode, V+ = 0` Specified Make-Before-Break Switching` Low ON-State Resistance (1 )` Control Inputs Are 5.5-V Tolerant` Low Charge Injection` Excellent ON-State Resistance Matching` Low Total Harmonic Distortion (THD)` 1.65-V to 5.5-V Single-Supply Operation`...

product image

TS5A3160 Picture
See larger image
SeekIC No. : 004528831 Detail

TS5A3160: Features: ` Isolation in the Powered-Off Mode, V+ = 0` Specified Make-Before-Break Switching` Low ON-State Resistance (1 )` Control Inputs Are 5.5-V Tolerant` Low Charge Injection` Excellent ON-Stat...

TS5A3160 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TS5A3160
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Isolation in the Powered-Off Mode, V+ = 0
` Specified Make-Before-Break Switching
` Low ON-State Resistance (1 )
` Control Inputs Are 5.5-V Tolerant
` Low Charge Injection
` Excellent ON-State Resistance Matching
` Low Total Harmonic Distortion (THD)
` 1.65-V to 5.5-V Single-Supply Operation
` Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
` ESD Performance Tested Per JESD 22
   2000-V Human-Body Model (A114-B, Class II)
   1000-V Charged-Device Model (C101)




Application

· Cell Phones
· PDAs
· Portable Instrumentation
· Audio and Video Signal Routing
· Low-Voltage Data Acquisition Systems
· Communication Circuits
· Modems
· Hard Drives
· Computer Peripherals
· Wireless Terminals and Peripherals




Pinout

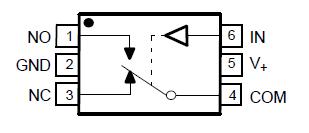

Connection Diagram


Specifications


MIN
MAX
UNIT
V+
 Supply voltage range(3)
−0.5
6.5
V
VNC
VNO
VCOM
 Analog voltage range(3)(4)(5)
−0.5
V+ + 0.5
V
IK
INC
INO
 Analog port diode current VNC, VNO, VCOM < 0
-50
mA
On-state switch current VNC, VNO, VCOM = 0 to V+
-200
200
mA
ICOM
 On-state peak switch current(6)
-400
400
VI
 Digital input voltage range(3)(4)
−0.5
6.5
V
IIK
 Digital input clamp current VI < 0
-50
mA
I+
 Continuous current through V+
100
mA
IGND
 Continuous current through GND
-100
mA
JA
 Package thermal impedance(7) DCU package
165
°C/W
YEA/YZA package
259
YEP/YZP package
123
Tstg
 Storage temperature range
-65
150
°C
(1) Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These
     are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated
     under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended
     periods may affect device reliability.
(2) The algebraic convention, whereby the most negative value is a minimum and the most positive value is a maximum
(3) All voltages are with respect to ground, unless otherwise specified.
(4) The input and output voltage ratings may be exceeded if the input and output clamp-current ratings are observed.
(5) This value is limited to 5.5 V maximum.
(6) Pulse at 1-ms duration < 10% duty cycle
(7) The package thermal impedance is calculated in accordance with JESD 51-7.


Description

The TS5A3160 is a single-pole double-throw (SPDT) analog switch that is designed to operate from 1.65 V to 5.5 V. The device offers a low ON-state  esistance and an excellent channel-to-channel ON-state resistance matching. The device has excellent total harmonic distortion (THD) performance and consumes very low power. hese features make this device suitable for portable audio applications.
