TS5A23157

Features: ` Specified Break-Before-Make Switching` Low ON-State Resistance (10 )` Control Inputs Are 5-V Tolerant` Low Charge Injection` Excellent ON-Resistance Matching` Low Total Harmonic Distortion` 1.8-V to 5.5-V Single-Supply Operation` Latch-Up Performance Exceeds 100 mA Per JESD 78, Class I...

product image

TS5A23157 Picture
See larger image
SeekIC No. : 004528820 Detail

TS5A23157: Features: ` Specified Break-Before-Make Switching` Low ON-State Resistance (10 )` Control Inputs Are 5-V Tolerant` Low Charge Injection` Excellent ON-Resistance Matching` Low Total Harmonic Distorti...

TS5A23157 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TS5A23157
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Specified Break-Before-Make Switching
` Low ON-State Resistance (10 )
` Control Inputs Are 5-V Tolerant
` Low Charge Injection
` Excellent ON-Resistance Matching
` Low Total Harmonic Distortion
` 1.8-V to 5.5-V Single-Supply Operation
` Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
` ESD Performance Tested Per JESD 22
    − 2000-V Human-Body Model (A114-B, Class II)
    − 1000-V Charged-Device Model (C101)


Application

·Sample-and-Hold Circuit
· Battery-Powered Equipments
· Audio and Video Signal Routing
· Communication Circuits


Pinout

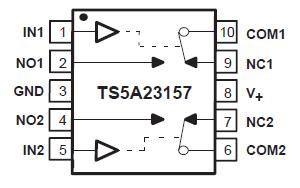

Connection Diagram


Specifications

Supply voltage range, V+ (see Note 1)................................. −0.5 V to 6.5 V
Analog voltage range, VNC, VNO, VCOM (see Notes 1, 2, and 3)    ................ −0.5 V to V+ + 0.5 V
Analog port diode current, I I/OK (VNC, VNO, VCOM < 0 or VNC, VNO, VCOM > V+) ............... ±50 mA
On-state switch current, INC, INO, ICOM (VNC, VNO, VCOM = 0 to V+)  ..................... ±50 mA
Digital input voltage range, VIN (see Notes 1 and 2)  ......................... −0.5 V to 6.5 V
Digital input clamp current, IIK (VIN < 0) ....................................−50 mA
Continuous current through V+ or GND ................................... ±100 mA
Package thermal impedance, JA (see Note 4)  ...............................165°C/W
Storage temperature range, Tstg ..................................−65°C to 150°C
† Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are
   stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under
   "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods
    may affect device reliability.
(1) All voltages are with respect to ground, unless otherwise specified.
(2) The input and output voltage ratings may be exceeded if the input and output clamp-current ratings are observed.
(3) This value is limited to 5.5 V maximum.
(4) The package thermal impedance is calculated in accordance with JESD 51-7.


Description

The TS5A23157 is a dual, single-pole, double-throw (SPDT) analog switch designed to operate from 1.65 V to 5.5 V. This device can handle both digital and analog signals. Signals up to 5.5 V (peak) can be transmitted in either direction.
