Features:

`VERYLOW POWER CONSUMPTION : .
`100A typ at V_CC = 5V
` HIGH MAXIMUM ASTABLE FREQUENCY .2.7MHz
`PIN-TO-PIN AND FUNCTIONALLY .COMPATIBLEWITH BIPOLAR NE555 .
`VOLTAGERANGE : +2V to +18V .
`HIGH OUTPUT CURRENT CAPABILITY
`SUPPLY CURRENT SPIKES REDUCED .DURING OUTPUT TRANSITIONS .
`HIGH INPUT IMPEDANCE : 1012 W OUTPUT COMPATIBLE WITH TTL,CMOS AND LOGIC MOS

Pinout

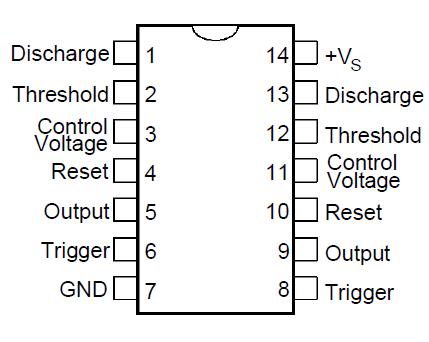

Connection Diagram

Specifications

Symbol	Parameter	Value	Unit
V_CC	Supply Voltage	+18	V
T_J	Junction Temperature	+150

Description

The TS556M is a dualCMOStimer which offersvery low consumption (Icc_(TYP) TS556 = 200A Icc(TYP) NE556 = 6mA) and high frequency (f_(max.) TS556 = 2.7MHz - f_(max.) NE556 = 0.1 MHz) Thus, either in Monostable or Astable mode, timing remains very accurate.

The TS556M provides reduced supply current spikes during output transitions, which enables the use of lower decoupling capacitors compared to thoserequired by bipolar NE556. Timing capacitors can also be minimized due to high input impedance (10¹² ).
