TS556

Features:

`VERY LOW POWER CONSUMPTION :
   220 A typ at V<sub>CC</sub> = 5V
   180 A typ at V<sub>CC</sub> = 3V
` HIGH MAXIMUM ASTABLE FREQUENCY 2.7MHz
` PIN-TO-PIN AND FUNCTIONALLY COMPATIBLE WITH BIPOLAR NE556
`WIDE VOLTAGE RANGE : +2V to +16V
` HIGH OUTPUT CURRENT CAPABILITY
` SUPPLY CURRENT SPIKES REDUCED DURING OUTPUT TRANSITIONS
` HIGH INPUT IMPEDANCE : 1012W
` OUTPUT COMPATIBLE WITH TTL,CMOS AND LOGIC MOS

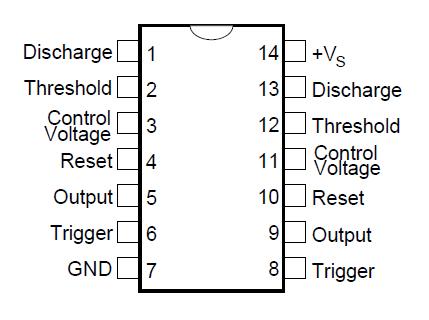

Pinout




Specifications

Symbol	Parameter	Value	Unit
VCC	Supply Voltage	+18	V
Tj	Junction Temperature	+150	°C
Tstg	Storage Temperature Range	-65 to +150	°C
PD	Power dissipation1) DIP14 SO14	1560 830	mW

1. Tj = 150°C, T_amb = 25°C with
   R_thja = 80°C/W for DIP14 package
   R_thja = 150°C/W for SO14 package


Description

The TS556 is a dual CMOS timer which offers very low consumption (Icc(TYP) TS556 = 220A at V_CC=+5V versus Icc_(TYP) NE556 = 6mA) and high frequency ff_(max.) TS556 = 2.7MHz versus f_(max.) NE556 = 0.1 MHz)

Thus, either in Monostable or Astable mode, timing remains very accurate.

The TS556 provides reduced supply current spikes during output transitions, which enables the use of lower decoupling capacitors compared to those required by bipolar NE556. Timing capacitors can also be minimized due to high input impedance (10¹²).
