Product Details

Description

Features:

`LOW INPUT . OFFSET VOLTAGE : 950mV max.
`LOW VOLTAGE NOISE : 4.5nV Hz
`HIGH GAIN BANDWIDTH PRODUCT : 15MHz
`HIGH SLEW RATE : 7V/ms .
`LOW DISTORTION : 0.002%
`ESD INTERNAL PROTECTION : 2kV

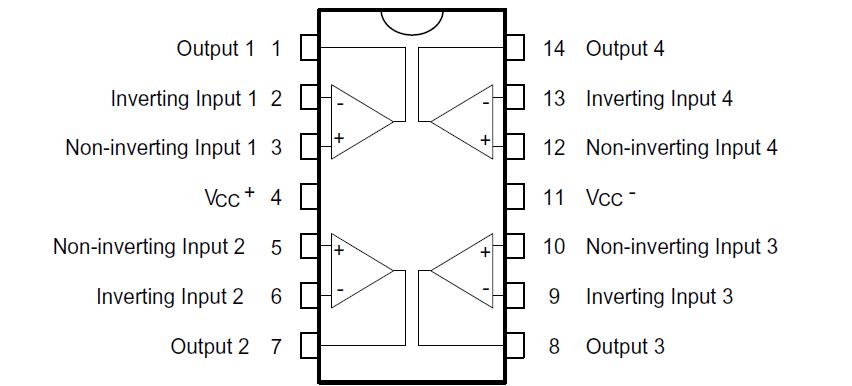

Pinout

Connection Diagram

Specifications

Symbol	Parameter	Value	Unit
V_CC	Supply Voltage	±18 or +36	V
V_id	Differential Input Voltage - (note 1)	±30	V
V_i	Input Voltage - (note 1)	±15	V
	Output Short-Circuit Duration - (note 2)	Infinite
T_oper	Operating Free-air Temperature Range	-40 to +105
T_j	Maximum Junction Temperature	+150
T_stg	Storage Temperature	-65 to +150
P_tot	Maximum Power Dissipation - (note 2)	500	mW

Notes :
1. Either or both input voltages must not exceed the magnitude of VCC⁺or VCC^-2. Power dissipation must be considered to ensure maximum junction temperature (Tj) is not exceeded

Description

The TS524 is a monolithic quad operational amplifier particularly well-suited for audio applications. The TS524 offers a very low input offset voltage as
well as low voltage noise (4.5nV Hz ) and high dynamic performances (15MHz gain bandwidth product, 7V/ms slew rate).

The output stage allows a large output voltage swing and symmetrical source and sink currents.
