TS4994

Features: `Differential inputs` Near zero pop & click` 100dB PSRR @ 217Hz with grounded inputs` Operating from VCC = 2.5V to 5.5V` 1W RAIL to RAIL output power @ Vcc=5V, THD=1%, F=1kHz, with 8 load` 90dB CMRR @ 217Hz` Ultra-low consumption in standby mode (10nA) ` Selectable standby mode (acti...

product image

TS4994 Picture
See larger image
SeekIC No. : 004528767 Detail

TS4994: Features: `Differential inputs` Near zero pop & click` 100dB PSRR @ 217Hz with grounded inputs` Operating from VCC = 2.5V to 5.5V` 1W RAIL to RAIL output power @ Vcc=5V, THD=1%, F=1kHz, with 8 l...

TS4994 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TS4994
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Differential inputs
` Near zero pop & click
` 100dB PSRR @ 217Hz with grounded inputs
` Operating from VCC = 2.5V to 5.5V
` 1W RAIL to RAIL output power @ Vcc=5V, THD=1%, F=1kHz, with 8 load
` 90dB CMRR @ 217Hz
` Ultra-low consumption in standby mode (10nA)
` Selectable standby mode (active low or active high
` Available in DFN10 3x3, 0.5mm pitch & MiniSO8
` All lead-free packages


Application

· Mobile phones (cellular / cordless)
· Laptop / notebook computers
· PDAs
· Portable audio devices


Pinout

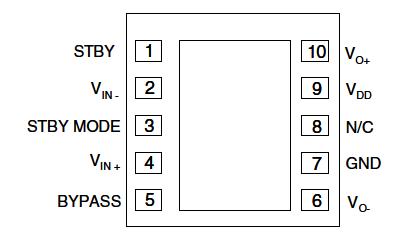

Connection Diagram


Specifications

Symbol
 Parameter
Value
Unit
VCC
 Supply voltage 1
6
V
Vi
 Input Voltage 2
GND to VCC
V
Toper
 Operating Free Air Temperature Range
-40 to + 85
Tstg
 Storage Temperature
-65 to +150
Tj
 Maximum Junction Temperature
150
Rthja
 Thermal Resistance Junction to Ambient 3
DFN10
Mini-SO8
120
215
/W
Pd
 Power Dissipation(4)
internally limited.
W
ESD
 Human Body Model
2
kV
ESD
 Machine Model
200
V
  Latch-up Immunity
200
 mA
 Lead Temperature (soldering, 10sec)
260
(1) All voltages values are measured with respect to the ground pin.
(2) The magnitude of input signal must never exceed VCC + 0.3V / GND - 0.3V
(3) The device is protected by a thermal shutdown active at 150°C


Description

The TS4994 is an audio power amplifier capable of delivering 1W of continuous RMS output power into an 8 load @ 5V. Thanks to its differential inputs, it exhibits outstanding noise immunity.

An external standby mode control reduces the supply current to less than 10nA. A STBY MODE pin allows the standby pin to be active HIGH or LOW (except in the MiniSO8 version). An internal thermal shutdown protection is also provided, making the device TS4994 capable of sustaining shortcircuits.

The device TS4994 is equipped with Common Mode Feedback circuitry allowing outputs to be always biased at Vcc/2 regardless of the input common mode voltage.

The TS4994 has been designed for high quality audio applications such as mobile phones and requires few external components.
