TS4990

Features:

` OPERATING FROM VCC = 2.2V to 5.5V
` 1W OUTPUT POWER @ Vcc=5V, THD=1%, f=1kHz, with 8 Load
` ULTRA LOW CONSUMPTION IN STANDBY MODE (10nA)
` 62dB PSRR @ 217Hz @ Grounded mode
` Zero POP & CLICK
` ULTRA LOW DISTORTION (0.1%)
` UNITY GAIN STABLE
` AVAILABLE IN 9 BUMPS Flip Chip Package


Application

· Mobile Phones (Cellular / Cordless)
· Laptop / Notebook Computers
· PDAs
· Portable Audio Devices

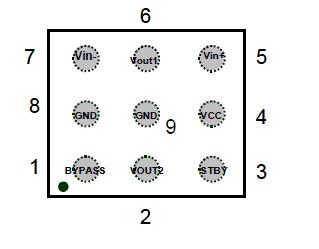

Pinout




Specifications

Symbol	Parameter	Value	Unit
VCC	Supply voltage (1)	6	V
Vi	Input Voltage (2)	GND to VCC	V
Toper	Operating Free Air Temperature Range	-40 to + 85
Tstg	Storage Temperature	-65 to +150
Tj	Maximum Junction Temperature	150
Rthja	Thermal Resistance Junction to Ambient(3) Flip Chip	TBD	/W
Pd	Power Dissipation	Internally Limited Fig 20.
ESD	Human Body Model	2	kV
ESD	Machine Model	200	V
	Latch-up Immunity	Class A (200mA)
	Lead Temperature (soldering, 10sec)	250

Description

The TS4990 has been designed for demanding audio applications such as mobile phones and to minimize the number of external components.

This Audio Power Amplifier TS4990 is capable of delivering 1W of continuous RMS Ouput Power into an 8W load @ 5V.

An externally controlled standby mode control reduces the supply current to less than 10nA. TS4990 also includes an internal thermal shutdown protection.

The unity-gain stable amplifier TS4990 can be configured by external gain setting resistors.
