Features: ` Operating from VCC = 2.5V to 5.5V` I²C bus control interface` 40mW output power @ Vcc=3.3V, THD=1%,F=1kHz, with 16 load` Ultra-low consumption in stdby mode: 0.6 A` Digital volume control range from 18dB to -34dB` 14-step digital volume control` 9 different output mode selections`...

product image

TS4975 Picture
See larger image
SeekIC No. : 004528763 Detail

TS4975: Features: ` Operating from VCC = 2.5V to 5.5V` I²C bus control interface` 40mW output power @ Vcc=3.3V, THD=1%,F=1kHz, with 16 load` Ultra-low consumption in stdby mode: 0.6 A` Digital volume c...

TS4975 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TS4975
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Operating from VCC = 2.5V to 5.5V
` I²C bus control interface
` 40mW output power @ Vcc=3.3V, THD=1%,F=1kHz, with 16 load
` Ultra-low consumption in stdby mode: 0.6 A
` Digital volume control range from 18dB to -34dB
` 14-step digital volume control
` 9 different output mode selections
` Pop & click noise reduction circuitry
` Flip-chip package 12 x 300m bumps (leadfree)


Application

· Mobile phones (cellular / cordless)
· PDAs
· Laptop/notebook computers
· Portable audio devices


Pinout

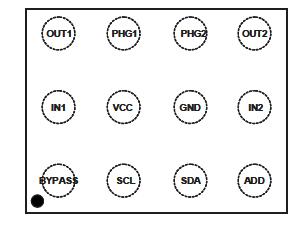

Connection Diagram


Specifications

Symbol
 Parameter
Value
Unit
VCC
 Supply voltage (1)
6
V
Vi
 Input Voltage (2)
GND to VCC
V
Toper
 Operating Free Air Temperature Range
-40 to + 85
°C
Tstg
 Storage Temperature
-65 to +150
°C
Tj
 Maximum Junction Temperature
150
°C
Rthja
 Thermal Resistance Junction to Ambient (3)
200
°C/W
Pd
 Power Dissipation
Internally Limited(4)
ESD
 Susceptibility - Human Body Model(5)
2
kV
ESD
 Susceptibility - Machine Model (min. Value)
200
V
Latch-up
 Latch-up Immunity
200
mA
 Lead Temperature (soldering, 10sec)
260
°C
1. All voltages values are measured with respect to the ground pin.
2. The magnitude of input signal must never exceed VCC + 0.3V / GND - 0.3V
3. Device is protected in case of over temperature by a thermal shutdown active @ 150°C.
4. Exceeding the power derating curves during a long period, may involve abnormal operating condition.
5. Human body model, 100pF discharged through a 1.5kOhm resistor, into pin to Vcc device.


Description

The TS4975 is a stereo audio headphone driver capable of delivering up to 102mW per channel of continuous average power into a 16 singleended load with 1% THD+N from a 5V power supply. The overall gain of these headphone drivers is controlled digitally by volume control registers programmed via the I²C interface, minimizing the number of external components needed. This device can also easily be driven by an MCU to select the output modes, through the I²C bus interface.

A phantom ground configuration allows one to avoid using bulky capacitors on the outputs of the headphone amplifiers TS4975.

The TS4975 is packaged into a 1.8mm X 2.3mm Flip Chip package, ideally suited for spaceconscious portable applications.
