Product Details

Description



Features:

`HIGHDYNAMIC FEATURES
`LARGE OUTPUT SWING .(±2.4V@ VCC = ±2.5V) .
`LOWNOISE LEVEL : 4nV Hz .
`LOWDISTORTION : 0.003% .
`OPERATINGRANGE : 2.7V to 12V
`AVAILABLEIN SOT23-5 MICROPACKAGE


Application

·Sound cards .
·PDA .
·CD players .
·Recording equipments .
·Multimedia
·Microphone preamplifier

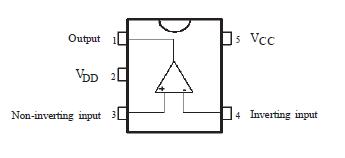

Pinout

Connection Diagram


Specifications

Symbol
 Parameter
Value
Unit
VCC
 Supply Voltage - note 1
12
V
Vid
 Differential Input Voltage - note 2
±VCC
V
Vin
 Input Voltage Range - note 3
-0.3 to 12.3
V
Toper
 Operating Free Air Temperature Range
-20 to +70
Tstg
 Storage Temperature
-65 to +150
Tj
 Maximum Junction Temperature
150
Rthjc
 Thermal Resistance Junction to Case - note 4
SOT23-5
SO8
SO14
TSSOP8
TSSOP14
81
28
22
26
21
/W
Rthjc
 Thermal Resistance Junction to Ambient (SOT23-5)
256
/W
ESD
 Human Body Model
2
kV
 Lead Temperature (soldering, 10sec)
260
Notes : 1. All voltages values, except differential voltage are with respect to network ground terminal.
2. Differential voltages are non-inverting input terminal with respect to the inverting input terminal.
3. The magniture of input and output voltages must never exceed VCC +0.3V.
4. Short-circuits can cause excessive heating and destructive dissipation.


Description

The TS461 is operationalamplifiers able to operate with voltages as low as ±1.35V and to reach a minimum of ±2Vpp of output swing when supplied
with ±2.5V.

This TS461 is well suited for every kind of portable and battery-supplied equipment where low noise and low distortion are key.

The TS461 are a cost-attractive access to the range of the Rail to Rail Op-Amps from STMicroelectonics.
