TS3V556

Features:

`DEDICATED TO3.3VORBATTERY SUPPLY .(Specified at 3V and 5V)
`VERY LOW POWER CONSUMPTION : .90 A/tim at V_CC = 3V
` WIDE SINGLE SUPPLY RANGE :.+2.7V to +16V .
`HIGH OUTPUT CURRENT CAPABILITY
`SUPPLY CURRENT SPIKES REDUCED .DURING OUTPUT TRANSITIONS HIGH INPUT IMPEDANCE : 10<sup>12</sup>
`.PIN-TO-PIN AND FUNCTIONALLY COMPATIBLE
`WITH BIPOLAR NE556 AND CMOS .TS556
` OUTPUT COMPATIBLE WITH TTL,CMOS AND LOGIC MOS

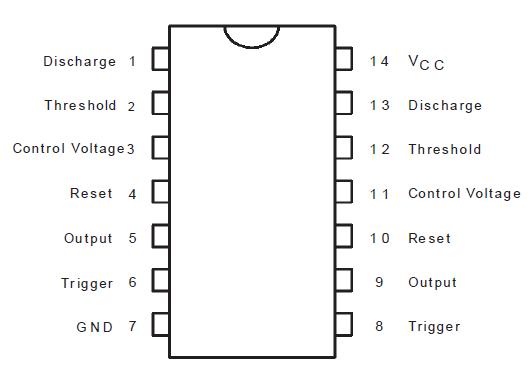

Pinout




Specifications

Symbol	Parameter	Value	Unit
VCC	Supply Voltage	+18	V
TJ	Junction Temperature	+150

Description

The TS3V556 with its low consumption (90mA/tim at V_CC = 3V) is a dual CMOS timer dedicated to 3.3Vor battery supply(specified at 3Vand5Voffering
also a high frequency (f(max) 2MHz at V_CC = 3V and 2.7 MHz at V_CC = 5V). Thus, either in monostable or astable mode, timing remains very accurate.

Timing capacitors of the TS3V556 can also be minimized due to high input impedance (10¹² ).
