Product Details

Description



Features:

·DEDICATED TO 3.3V ORBATTERY SUPPLY .(specified at 3V and 5V)
·EXTREMELYLOW SUPPLY CURRENT : .9mA typ/comparator
·WIDE SINGLE SUPPLY RANGE .2.7V to 16V
· EXTREMELYLOW INPUT CURRENTS : .1pA TYP
· INPUT COMMON-MODE VOLTAGE RANGE .INCLUDES GND
· FAST RESPONSE TIME : 2.5ms typ for .5mV overdrive
· PIN-TO-PIN AND FUNCTIONALLY COMPATIBLEWITH BIPOLAR LM393

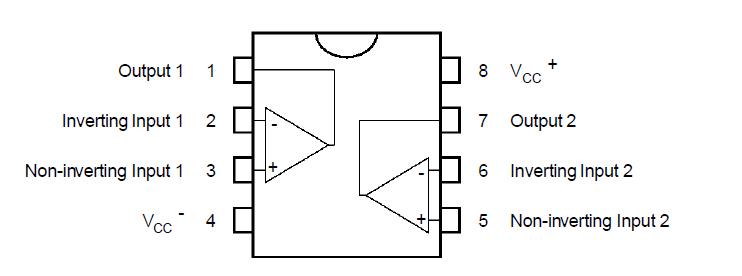

Pinout

Connection Diagram


Specifications

Symbol
 Parameter
Value
Unit
VCC+
 Supply Voltage - (note 1)
18
V
Vid
 Differential Input Voltage - (note 2)
-18
V
Vi
 Input Voltage - (note 3)
18
V
VO
 Output Voltage
18
IO
 Output Current
20
mA
Toper
 Operating Free-Air Temperature Range
TS3V393I
-40 to +125
Tstg
 Storage Temperature Range
-65 to +150

Notes :
1. All voltage values, except differential voltage, are with respect to network ground terminal.
2. Differential voltages are the non-inverting input terminal with respect to the inverting input terminal.
3. The magnitude of the input and the output voltages must never exceed the magnitude of the positive supply voltage.
4. Short circuit from outputs to VCC + can cause excessive heating and eventual destruction.




Description

The TS3V393 is a micropower dual CMOS voltage comparator with extremely low consumption of 9mA typ / comparator (20 times less than bipolar
LM393). Similar performances are offered by the dual micropower comparator TS3V3702 with a push-pullCMOS output.

Thus response times remain similar to the LM393.
