TS3V3704

Features: `DEDICATED TO 3.3V OR BATTERY SUPPLY .(specified at 3V and 5V) `PUSH-PULL CMOS OUTPUT (NO EXTER. NAL PULL-UP RESISTORREQUIRED)` EXTREMELYLOW SUPPLYCURRENT : .7A typ / comparator` WIDE SINGLE SUPPLY RANGE .2.7V to 16V `EXTREMELYLOW INPUTCURRENTS :.1pA TYP` INPUT COMMON-MODE VOLTAGE RANGE ...

product image

TS3V3704 Picture
See larger image
SeekIC No. : 004528701 Detail

TS3V3704: Features: `DEDICATED TO 3.3V OR BATTERY SUPPLY .(specified at 3V and 5V) `PUSH-PULL CMOS OUTPUT (NO EXTER. NAL PULL-UP RESISTORREQUIRED)` EXTREMELYLOW SUPPLYCURRENT : .7A typ / comparator` WIDE SING...

TS3V3704 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TS3V3704
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`DEDICATED TO 3.3V OR BATTERY SUPPLY .(specified at 3V and 5V)
`PUSH-PULL CMOS OUTPUT (NO EXTER. NAL PULL-UP RESISTORREQUIRED)
` EXTREMELYLOW SUPPLYCURRENT : .7A typ / comparator
` WIDE SINGLE SUPPLY RANGE .2.7V to 16V
`EXTREMELYLOW INPUTCURRENTS :.1pA TYP
` INPUT COMMON-MODE VOLTAGE RANGE .INCLUDES GND
`FAST RESPONSE TIME : 2ms typ for .5mV overdrive
` PIN-TO-PIN AND FUNCTIONALLY COMPATIBLE WITH BIPOLAR LM339


Pinout

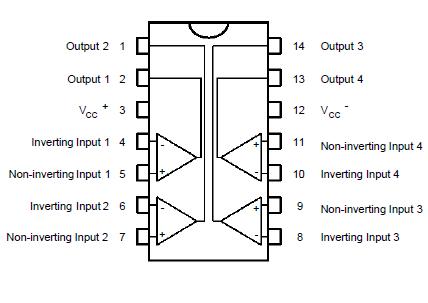

Connection Diagram


Specifications

Symbol
 Parameter
Value
Unit
VCC+
 Supply Voltage - (note 1)
18
V
Vid
 Differential Input Voltage - (note 2)
±18
V
Vi
 Input Voltage - (note 3)
18
V
VO
 Output Voltage
18
V
IO
 Output Current
20
mA
Toper
 Operating Free-Air Temperature Range
TS3V3704I

-40 to +125
Tstg
 Storage Temperature Range
-65 to +150
Notes :
1. All voltage values, except differential voltage, are with respect to network ground terminal.
2. Differential voltages are the non-inverting input terminal with respect to the inverting input terminal.
3. The magnitude of the input and the output voltages must never exceed the magnitude of the positive supply voltage.
4. Short circuit from outputs to VCC + can cause excessive heating and eventual destruction.


Description

The TS3V3704 is a micropower quad CMOS voltage comparator with extremely low consumption of 7mAtyp / comparator (20 times less than bipolar LM339). The push-pullCMOS output stage allows power and spacesaving by eliminating the external pull-up resistor required by usual open-collector output comparators.
