TS3V340

Features: *Low Differential Gain and Phase (DG = 0.2%, DP = 0.1° Typ)* Wide Bandwidth (BW = 500 MHz Typ)* Low Crosstalk (XTALK = −80 dB Typ)* Bidirectional Data Flow, With Near-Zero Propagation Delay* Low and Flat ON-State Resistance (ron = 3 Ω Typ, ron(flat) = 1 Ω Typ)* VCC Ope...

product image

TS3V340 Picture
See larger image
SeekIC No. : 004528699 Detail

TS3V340: Features: *Low Differential Gain and Phase (DG = 0.2%, DP = 0.1° Typ)* Wide Bandwidth (BW = 500 MHz Typ)* Low Crosstalk (XTALK = −80 dB Typ)* Bidirectional Data Flow, With Near-Zero Propagatio...

TS3V340 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TS3V340
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

* Low Differential Gain and Phase
   (DG = 0.2%, DP = 0.1° Typ)
*  Wide Bandwidth (BW = 500 MHz Typ)
*  Low Crosstalk (XTALK = −80 dB Typ)
*  Bidirectional Data Flow, With Near-Zero
    Propagation Delay
*  Low and Flat ON-State Resistance
    (ron = 3 Ω Typ, ron(flat) = 1 Ω Typ)
*  VCC Operating Range From 3 V to 3.6 V
*  Ioff Supports Partial-Power-Down Mode Operation
*  Data and Control Inputs Provide
    Undershoot Clamp Diode
*  Latch-Up Performance Exceeds 100 mA Per
    JESD 78, Class II
*  ESD Performance Tested Per JESD 22
  −  2000-V Human-Body Model
      (A114-B, Class II)
  − 1000-V Charged-Device Model (C101)
*  Suitable for Both RGB and Composite
    Video Switching


Application

Audio
Automotive
Broadband
Digital Control
Military
Optical Networking
Security
Telephony
Video & Imaging
Wireless


Pinout

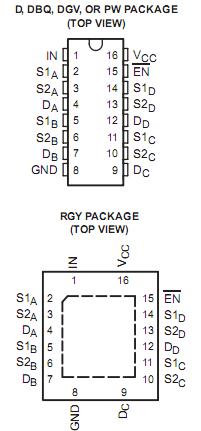

Connection Diagram


Specifications

Supply voltage range, VCC..........................................................−0.5 V to 4.6 V
Control input voltage range, VIN (see Notes 1 and 2) ..................−0.5 V to 7 V
Switch I/O voltage range, VI/O (see Notes 1, 2, and 3) ................−0.5 V to 7 V
Control input clamp current, IIK (VIN < 0)...............................................−50 mA
I/O port clamp current, II/OK (VI/O < 0)  ................................................−50 mA
ON-state switch current, II/O (see Note 4) ..........................................±128 mA
Continuous current through VCC or GND terminals ..............................±100 mA
Package thermal impedance, JA (see Note 5): D package....................73°C/W
                                                     (see Note 5): DBQ package ..............90°C/W
                                                     (see Note 5): DGV package ............120°C/W
                                                     (see Note 5): PW package............. 108°C/W
                                                     (see Note 6): RGY package...............39°C/W
Storage temperature range, Tstg .......................................... −65°C to 150°C


Description

    The TI video switch TS3V340 is a 4-bit 1-of-2 multiplexer/demultiplexer with a single switch-enable (EN) input. When EN is low, the switch is enabled, and the D port is connected to the S port. When EN is high, the switch is disabled, and the high-impedance state exists between the D and S ports. The select (IN) input controls the data path of the multiplexer/demultiplexer.

    Low differential of the TS3V340 gain and phase makes this switch ideal for composite and RGB video applications. The device has a wide bandwidth and low crosstalk, making it suitable for high-frequency applications as well.
