TS3V339

Features: ·DEDICATED TO 3.3V ORBATTERY SUPPLY .(specified at 3V and 5V) ·EXTREMELYLOW SUPPLY CURRENT :.9mA typ/comparator ·WIDE SINGLE SUPPLY RANGE .2.7V to 16V·EXTREMELYLOW INPUT CURRENTS :.1pA TYP·INPUT COMMON-MODE VOLTAGE RANGE .INCLUDES GND ·FAST RESPONSE TIME : 2.5ms typ for .5mV overdrive ·P...

product image

TS3V339 Picture
See larger image
SeekIC No. : 004528698 Detail

TS3V339: Features: ·DEDICATED TO 3.3V ORBATTERY SUPPLY .(specified at 3V and 5V) ·EXTREMELYLOW SUPPLY CURRENT :.9mA typ/comparator ·WIDE SINGLE SUPPLY RANGE .2.7V to 16V·EXTREMELYLOW INPUT CURRENTS :.1pA TYP...

TS3V339 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TS3V339
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·DEDICATED TO 3.3V ORBATTERY SUPPLY .(specified at 3V and 5V)
·EXTREMELYLOW SUPPLY CURRENT :.9mA typ/comparator
·WIDE SINGLE SUPPLY RANGE .2.7V to 16V
·EXTREMELYLOW INPUT CURRENTS :.1pA TYP
·INPUT COMMON-MODE VOLTAGE RANGE .INCLUDES GND
·FAST RESPONSE TIME : 2.5ms typ for .5mV overdrive
·PIN-TO-PIN AND FUNCTIONALLY COMPATIBLEWITH BIPOLAR LM339

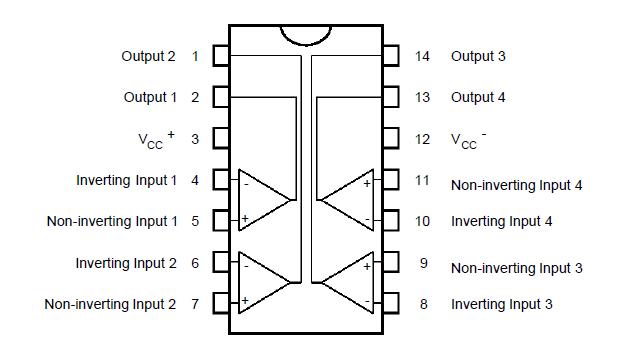

Pinout

Connection Diagram


Specifications

Symbol
 Parameter
Value
Unit
VCC+
 Supply Voltage - (note 1)
18
V
Vid
 Differential Input Voltage - (note 2)
-18
V
Vi
 Input Voltage - (note 3)
18
V
VO
 Output Voltage
18
IO
 Output Current
20
mA
Toper
 Operating Free-Air Temperature Range
TS3V339I
-40 to +125
Tstg
 Storage Temperature Range
-65 to +150
Notes :
1. All voltage values, except differential voltage, are with respect to network ground terminal.
2. Differential voltages are the non-inverting input terminal with respect to the inverting input terminal.
3. The magnitude of the input and the output voltages must never exceed the magnitude of the positive supply voltage.
4. Short circuit from outputs to VCC + can cause excessive heating and eventual destruction.


Description

The TS3V339isamicropowerquadCMOSvoltage comparator with extremely low consumption of 9mA typ / comparator (20 times less than bipolar LM339). Similar performances are offered by the quad micropower comparator TS3V3704 with a push-pullCMOS output.

Thus response times remain similar to the LM339.
