Features: Wide Bandwidth (BW = 900 MHz Typ)
Low Crosstalk (XTALK = −41 dB Typ)
Low Bit-to-Bit Skew [tsk(o) = 0.2 ns Max]
Low and Flat ON-State Resistance(ron = 4 Typ, ron(flat) = 0.7 Typ)
Low Input/Output Capacitance(CON = 10 pF Typ)
Rail-to-Rail Switching on Data I/O Ports(0 to 5 V)
VDD Operating Range From 3 V to 3.6 V
Ioff Supports Partial-Power-Down Mode Operation
Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
ESD Performance Tested Per JESD 22
− 2000-V Human-Body Model (A114-B, Class II)
− 1000-V Charged-Device Model (C101)
Suitable for 10/100/1000-Mbit Ethernet Signaling Applications
− 10/100/1000 Base-T Signal Switching
− Differential (LVDS, LVPECL) Signal Switching
− Digital Video Signal Routing
− Notebook Docking Signal Routing
− Hub and Router Signal SwitchingApplicationAudio www.ti.com/audio
Automotive www.ti.com/automotive
Broadband www.ti.com/broadband
Digital Control www.ti.com/digitalcontrol
Military www.ti.com/military
Optical Networking www.ti.com/opticalnetwork
Security www.ti.com/security
Telephony www.ti.com/telephony
Video & Imaging www.ti.com/video

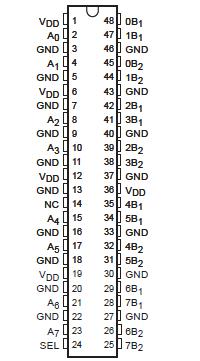

Wireless www.ti.com/wirelessPinout
SpecificationsSupply voltage range, VDD .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −0.5 V to 4.6 V
Control input voltage range, VIN (see Notes 1 and 2) . . . . . . . . . . . . . . −0.5 V to 7 V
Switch I/O voltage range, V I/O (see Notes 1, 2, and 3) . . . . . . . . . . . . −0.5 V to 7 V
Control input clamp current, IIK (VIN < 0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . −50 mA
I/O port clamp current, I I/OK (VI/O < 0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −50 mA
ON-state switch current, II/O (see Note 4) .. . . . . . . . . . . . . . . . . . . . . . . . . ±128 mA
Continuous current through VDD or GND terminals . . . . . . . . . . .. . . . . . . . . ±100 mA
Package thermal impedance, JA (see Note 5): DGG package . . . .. . . . . . . . . 70°C/W
DGV package . . .. . . . . . . . . . 58°C/W
Storage temperature range, Tstg . . . .. . . . . . . . . . . . . . . . . . . . . . . . −65°C to 150°C
† Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
NOTES: 1. All voltages are with respect to ground, unless otherwise specified.
2. The input and output voltage ratings may be exceeded if the input and output clamp-current ratings are observed.
3. VI and VO are used to denote specific conditions for VI/O.
4. II and IO are used to denote specific conditions for II/O.
5. The package thermal impedance is calculated in accordance with JESD 51-7.
DescriptionThe TS3L301 is a 16-bit to 8-bit multiplexer/demultiplexer LAN switch with a single select (SEL) input. The SEL input controls the data path of the multiplexer/ demultiplexer.
The TS3L301 provides a low and flat on-state resistance (ron) and an excellent on-resistance match. Low input/output capacitance, high-bandwidth, low skew, and low crosstalk among channels make this device suitable for various LAN applications, such as 10/100/1000 Base-T.
TS3L301 Data Sheet
