TS374C

Features: `WIDE SINGLE SUPPLY RANGE OR DUAL`SUPPLIES 3V TO 16V OR ±1.5V to ±8V VERY LOW SUPPLY CURRENT : 0.1mA/COMP INDEPENDENT OF SUPPLY .VOLTAGE` EXTREMELY LOW INPUT BIAS CURRENT : 1pA TYP EXTREMELYLOW INPUT OFFSET`CURRENT : 1pATYP .LOWINPUT OFFSET VOLTAGE INPUT COMMON-MODE VOLTAGE RANGE`INCLUD...

product image

TS374C Picture
See larger image
SeekIC No. : 004528638 Detail

TS374C: Features: `WIDE SINGLE SUPPLY RANGE OR DUAL`SUPPLIES 3V TO 16V OR ±1.5V to ±8V VERY LOW SUPPLY CURRENT : 0.1mA/COMP INDEPENDENT OF SUPPLY .VOLTAGE` EXTREMELY LOW INPUT BIAS CURRENT : 1pA TYP EXTREM...

TS374C Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TS374C
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`WIDE SINGLE SUPPLY RANGE OR DUAL
`SUPPLIES 3V TO 16V OR ±1.5V to ±8V VERY LOW SUPPLY CURRENT :
   0.1mA/COMP INDEPENDENT OF SUPPLY .VOLTAGE
` EXTREMELY LOW INPUT BIAS CURRENT :
    1pA TYP EXTREMELYLOW INPUT OFFSET
`CURRENT : 1pATYP .LOWINPUT OFFSET VOLTAGE INPUT COMMON-MODE VOLTAGE RANGE
`INCLUDES GND LOW OUTPUT SATURATION VOLTAGE .150mV TYP
`OUTPUT COMPATIBLE WITH TTL, MOS AND .CMOS .
`HIGH INPUT IMPEDANCE 1012TYP
`FAST RESPONSE TIME : 200ns TYP FOR TTL LEVEL INPUT STEP


Pinout

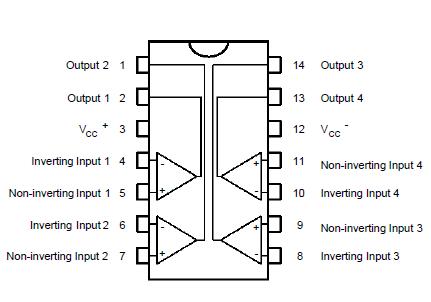

Connection Diagram


Specifications

Symbol
 Parameter
Value
Unit
VCC+
 Supply Voltage - (note 1)
18
V
Vid
 Differential Input Voltage - (note 2)
±18
V
Vi
 Input Voltage - (note 3)
18
V
VO
 Output Voltage
18
V
IO
 Output Current
20
mA
 Duration of Output Short-Circuit to GND - (note 4)
Infinite
Toper
 Operating Free-Air Temperature Range
TS374C
TS374I
TS374M
0 to +70
-40 to +125
-55 to +125
Tstg
 Storage Temperature Range
-65 to +150
Notes :
1. All voltage values, except differential voltage, are with respect to network ground terminal.
2. Differential voltages are the non-inverting input terminal with respect to the inverting input terminal.
3. The magnitude of the input and the output voltages must never exceed the magnitude of the positive supply voltage.
4. Short circuit from outputs to VCC+ can cause excessive heating and eventual destruction.


Description

These TS374C consist of four independent precision voltagecomparators,designedto operatewith single or dual supplies.

These differential comparators of the TS374C use the SGSTHOMSONsilicon linMOS process giving them an excellent consumption-speed ratio.

These TS374C are ideally suited for low consumption applications.
