TS3022

Features: ` Propagation delay: 33ns` Low current consumption: 64A` Rail-to-rail inputs` Push-pull outputs` Supply operation from 1.8V to 5V` Wide temperature range: -40°C to +125°C` ESD tolerance: 2kV HBM / 200V MM` Latch-up immunity: 200mA` SMD packagesApplication· Telecom· Instrumentation· Signa...

product image

TS3022 Picture
See larger image
SeekIC No. : 004528592 Detail

TS3022: Features: ` Propagation delay: 33ns` Low current consumption: 64A` Rail-to-rail inputs` Push-pull outputs` Supply operation from 1.8V to 5V` Wide temperature range: -40°C to +125°C` ESD tolerance: 2...

TS3022 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TS3022
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/18

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Propagation delay: 33ns
` Low current consumption: 64A
` Rail-to-rail inputs
` Push-pull outputs
` Supply operation from 1.8V to 5V
` Wide temperature range: -40°C to +125°C
` ESD tolerance: 2kV HBM / 200V MM
` Latch-up immunity: 200mA
` SMD packages


Application

· Telecom
· Instrumentation
· Signal conditioning
· High-speed sampling systems
· Portable communication systems


Pinout

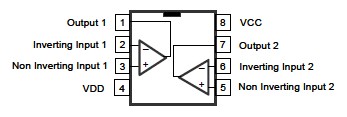

Connection Diagram


Specifications

Symbol
Parameter
Value
Unit
VCC
Supply voltage(1)
5.5
V
VID
Differential input voltage(2)
±5
V
VIN
Input voltage range
VDD-0.3 to VCC+0.3
V
PD
Power dissipation(3)
SC70-5
SOT23-5
SO8
MiniSO8
260
500
1000
650
mW
Tstg
Storage temperature
-65 to +150
°C
TJ
Junction temperature
150
°C
TLEAD
Lead temperature (soldering 10 seconds)
260
°C
ESD(4)
Human body model (HBM)
2000
V
Machine model (MM)
200
Latch-up immunity
200
mA

1. All voltage values, except differential voltage, are referenced to V DD.
2. The magnitude of input and output voltages must never exceed the supply rail ±0.3V.
3. Short-circuits can cause excessive heating and destructive dissipation. PD is calculated with Tamb=+25°C, Tj =+150°C and Rthja = 478°C/W for SC70-5, Rthja = 250°C/W for SOT23-5, Rthja = 125°C/W for SO8,
Rthja = 190°C/W for MiniSO8.
4. ESD tolerances are compliant with MIL883C, JEDEC STANDARD JESD22, ANSI/ESD STM5.1-2001.




Description

The TS3022 single and dual comparators feature high-speed response time with rail-to-rail inputs. Specified from 2V to 5V supply voltage, these comparators can operate over a wide temperature range: -40°C to +125°C.

The TS3022 comparators offer micropower consumption as low as a few tens of microamperes thus providing an excellent ratio of power consumption current versus response time.

The TS3022 include push-pull outputs and are available in small packages (SMD).
