Product Details

Description

Features:

High voltage.
High speed switching

Pinout

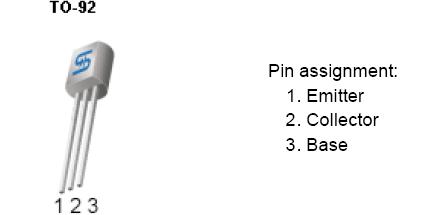

Connection Diagram

Specifications

Parameter		Symbol	Limit	Unit
Collector-Base Voltage		V_CBO	700V	V
Collector-Emitter Voltage		V_CEO	400V	V
Emitter-Base Voltage		V_EBO	9	V
Collector Current	DC	I_C	0.3	A
Collector Current	Pulse	I_C	0.5	A
Collector Power Dissipation		P_D	0.6	W
Operating Junction Temperature		T_J	+150	oC
Operating Junction and Storage Temperature Range		T_STG	- 55 to +150	oC
