TRF3761

Features: • Fully Integrated VCO• Low Phase Noise: -138 dBc/Hz (at 600 kHz f VCO of 1.9 GHz )• Low Noise Floor: -160dBc/Hz at 10 MHz O• Integer-N PLL• Input Reference Frequency range: 10 104• VCO Frequency Divided by 2-4 Output• Output Buffer Enable Pin...

product image

TRF3761 Picture
See larger image
SeekIC No. : 004528094 Detail

TRF3761: Features: • Fully Integrated VCO• Low Phase Noise: -138 dBc/Hz (at 600 kHz f VCO of 1.9 GHz )• Low Noise Floor: -160dBc/Hz at 10 MHz O• Integer-N PLL• Input Reference F...

TRF3761 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TRF3761
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Fully Integrated VCO
• Low Phase Noise: -138 dBc/Hz (at 600 kHz f VCO of 1.9 GHz )
• Low Noise Floor: -160dBc/Hz at 10 MHz O
• Integer-N PLL
• Input Reference Frequency range: 10 104
• VCO Frequency Divided by 2-4 Output
• Output Buffer Enable Pin
• Programmable Charge Pump Current
• Hardware and Software Power Down
• 3-Wire Serial Interface
• Single Supply: 4.5 V 5.25 V Operation
• Silicon Germanium Technology


Application

• Wireless Infrastructure
WCDMA
CDM
GSM

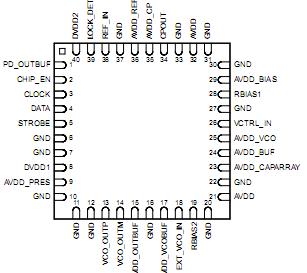

Pinout

Connection Diagram


Specifications

  VALUE UNIT
Supply voltage range(2) -0.3 to 5.5 V
Digital I/O voltage range -0.3 to VI +0.3 V
ESD rating, human-body model (HBM)(3) TBD
ESD rating, charged-device model (CDM)(3) TBD
Operating virtual junction temperature range, TJ -40 to 150 °C
Operating free-air temperature range, TA -40 to 85 °C
Storage temperature range, Tstg -65 to 150 °C



Description

TRF3761 is a family of high performance, highly integrated frequency synthesizers, optimized for wireless infrastructure applications. TRF3761 includes a low noise voltage controlled oscillator (VCO) and an integer-N PLL.

TRF3761 integrates a divide-by-2 or 4 options for a more flexible output frequency range. It is controlled through a 3-wire serial interface programming (SPI) interface. It can be powered down when it is not used by the SPI or external pin.
