TRF1020

Features: · Operates from 2.75 V to 3.5 V Supply· Low Current Consumption· Low Profile Package: 48-pin Plastic Quad Flat Package (PQFP)· Global System for Mobile Communications (GSM), Class 3, 4, or 5 Mobile Station (MS) Portable Cellular Telephone Applications· Conversion from Radio Frequency (RF...

product image

TRF1020 Picture
SeekIC No. : 004528064 Detail

TRF1020: Features: · Operates from 2.75 V to 3.5 V Supply· Low Current Consumption· Low Profile Package: 48-pin Plastic Quad Flat Package (PQFP)· Global System for Mobile Communications (GSM), Class 3, 4, or...

floor Price/Ceiling Price

Part Number:
TRF1020
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Operates from 2.75 V to 3.5 V Supply
· Low Current Consumption
· Low Profile Package: 48-pin Plastic Quad Flat Package (PQFP)
· Global System for Mobile Communications (GSM), Class 3, 4, or 5 Mobile Station (MS) Portable Cellular Telephone Applications
· Conversion from Radio Frequency (RF) to I and Q Baseband on a Single Chip
· Independent Powerdown of Low Noise Amplifiers (LNA), Mixers, Intermediate Frequency (IF) Amplifiers, and Voltage-Controlled Oscillator (VCO)
· Digital Gain Control for LNA and IF Amplifiers
· Two IF Amplifiers for Dual Conversion if Required
· Cascaded Operation of IF Amplifiers for Single-Conversion Configurations
· DC Compensation of I and Q Outputs



Pinout

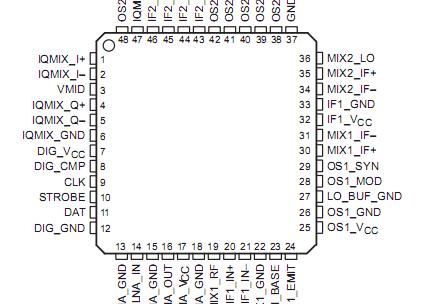

  Connection Diagram


Specifications

Supply voltage range, VCC   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to +5.5 V
Input voltage to any other pin, VIN   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to (VCC +0.3) V
Power dissipation, PD  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 300 mW
Maximum operating junction temperature, TJmax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .150°C
Operating ambient temperature range, TA  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 °C to +85°C
Storage temperature range, Tstg  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65°C to +150°C



Description

The TRF1020 is a single-chip radio frequency (RF) downconverter suitable for 900-MHz GSM applications. It combines in one small package an LNA, an RF mixer, an IF mixer, two IF amplifiers, an I and Q mixer, and one buffered VCO. The TRF1020 requires few external components.

The LNA TRF1020 has a nominal gain of 12.4 dB and noise figure of 2.1 dB. The first RF mixer has a conversion gain of 13.4 dB and a single-sideband (SSB) noise figure of 8.3 dB. The IF amplifiers have combined variable gain from 0 to 84 dB in approximately 3-dB steps. The IF amplifier frequency range of TRF1020 is 40 to 180 MHz for the first IF amplifier and 10 to 180 MHz for the second IF amplifier. The local oscillator of the I and Q mixer operates at four times the last frequency of the IF mixer.

Power consumption of TRF1020 is kept to a minimum and can be further reduced by dynamically placing selected functions in standby power-down mode when not required. Power-down control is provided through the three-line digital serial interface.
