TR3005

Output Power :
Interface Type :
Maximum Operating Temperature : + 85 C
Packaging : Reel
Maximum Data Rate : 115.2 Kbps
Operating Supply Voltage : 2.5 V, 3.3 V
Frequency Range : 403.5 MHz
Modulation Format : OOK/ASK
Package / Case : SM-20


Features:

· De signed for Short-Range Wire less Med ical Data Com mu ni ca tions
· Sup ports RF Data Trans mis sion Rates Up to 115.2 kbps
· 3 V, Low Cur rent Op er a tion plus Sleep Mode

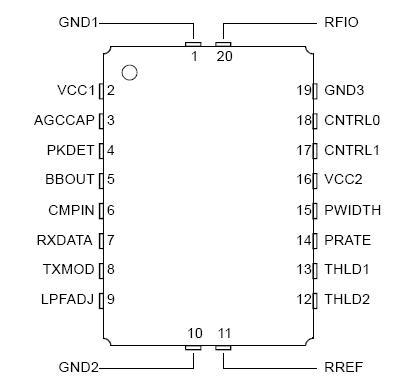

Pinout






Specifications

Rating	Value	Units
Power Supply and All Input/Output Pins	-0.3 to +4.0	V
Non-Operating Case Temperature	-50 to +100	°C
Soldering Temperature (10 seconds)	260	°C

Description

The TR3005 ul tra-miniature hy brid trans ceiver is ideal for short-range wire less med ical data ap - pli ca tions where ro bust op er a tion, small size, low power con sump tion and low cost are re quired. The TR3005 em ploys RFM's am pli fier-sequenced hy brid (ASH) ar chi tec ture to achieve this unique blend of char ac teristics. All crit ical RF func tions are con tained in the hy brid, sim plifying and speed ing de sign-in. The re ceiver sec tion of the TR3005 is sen si tive and sta ble. A wide dy - namic range log de tector, in com bi na tion with dig ital AGC and a com pound data slicer, pro vide robust per formance in the pres ence of on-channel in ter fer ence or noise. Two stages of SAW fil - ter ing pro vide ex cel lent re ceiver out-of-band re jection. The trans mit ter in cludes pro vi sions for both on-off keyed (OOK) and amplitude-shift keyed (ASK) mod u la tion. The transmitter of TR3005 employs SAW fil tering to sup press out put har mon ics.

Parameters:

Technical/Catalog Information	TR3005
Vendor	RF MONOLITHICS INC (VA)
Category	RF and RFID
Frequency	403.55MHz
Data Rate - Maximum	115.2kbps
Modulation or Protocol	ASK, OOK
Applications	ISM
Power - Output	0dBm
Sensitivity	-109dBm
Voltage - Supply	2.2 V ~ 3.7 V
Current - Receiving	3.8mA
Current - Transmitting	7.5mA
Package / Case	SM-20H
Operating Temperature	-10°C ~ 55°C
Data Interface	PCB, Surface Mount
Antenna Connector	PCB, Surface Mount
Packaging	Digi-Reel?
Memory Size	-
Lead Free Status	Lead Free Compliant by Exemption
RoHS Status	RoHS Compliant by Exemption
Other Names	TR3005 TR3005 583 1090 6 ND 58310906ND 583-1090-6
