TQS5200

Number of Switches : Single
Switch Configuration : SPDT
Maximum Operating Temperature : + 85 C
Minimum Operating Temperature : - 40 C
Packaging : Reel
Insertion Loss : 0.8 dB
Off Isolation (Typ) : 28 dB
Mounting Style : Through Hole
Package / Case : SLIM-7


Features:

· Integrated SPDT Switch for Singleband
  and Dual-band 802.11a/b/g
  WLAN Systems
· 1.0 to 6.0 GHz Frequency Coverage
· Low Insertion Loss
· High Isolation
· Positive Control Voltage
· GaAs pHEMT Technology
· Leadless 1.3 x 2.0 x 0.4 mm SMT Package


Application

· 802.11b WLAN
· 802.11g WLAN
· 802.11a WLAN
· TX-RX Switching
· Antenna Diversity Switching

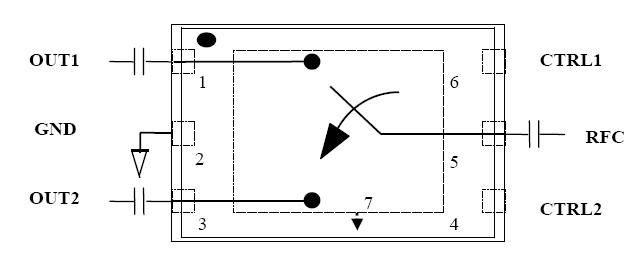

Pinout




Specifications

Parameter	Symbol	Value		Unit
		min	max
Control Voltage Range	Vcntrl	-5	5	v
RF Input Power	Pin		3	w
Junction Temperature @ 30 dBm input, 25° C	Tj		50	°C
Storage Temperature	Ta	-40	150	°C
Operating Temperature Range	Toper	-40	85	°C

Description

The TQS5200 is a high power, single-pole double-throw switch configured for TX-RX or Antenna Diversity switching applications for the WLAN market. The device exhibits industry-leading insertion loss, isolation and power handling. It requires no fixed supply voltage and operates with a positive control voltage. The switch TQS5200 is manufactured using TriQuint's GaAs pHEMT process and is packaged in an ultra-small, low-profile 1.3mm x 2mm x 0.4mm SLIM-7 package.

Parameters:

Technical/Catalog Information	TQS5200
Vendor	Triquint Semiconductor Inc
Category	RF and RFID
RF Type	-
Package / Case	SLIM-7
Frequency	0Hz ~ 6GHz
Features	-
Packaging	Tape & Reel (TR)
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	TQS5200 TQS5200
