TQP4M3019

Number of Switches : Single
Insertion Loss : 0.6 dB
Maximum Operating Temperature : + 85 C
Minimum Operating Temperature : - 40 C
Mounting Style : SMD/SMT
Packaging : Reel
Off Isolation (Typ) : 27 dB
Switch Configuration : SP3T
Package / Case : STSLP-12


Features:

• pHEMT GaAs MMIC Die
• Excellent Cross-Modulation Performance
-108 dBm Typ @ Cellular
-105 dBm @ PCS
• Excellent ESD Rating:
  300V HBM, 2000V CDM
• Low Control Voltage Operation to +2.6V
• High Isolation: 22dB typ at PCS Band
• Very Low Control Current: 10 A typ
• Low Insertion Loss: 0.6 dB typ at PCS Band
• Small Footprint 2.0 x 2.0 mm 12 lead STSLP Package


Application

• CDMA Handset Antenna Switch for Cellular, PCS and GPS operation.

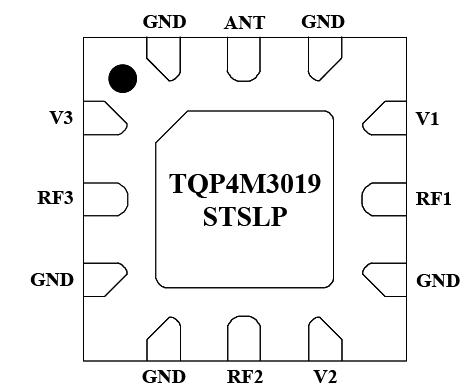

Pinout




Specifications

Symbol	Parameter	Absolute Maximum Value	Unit
PIN Max	Maximum Input Power	+38	dBm
VCTRL	Control Voltage	+/- 6	VDC
TC	Case Temperature, Survival	-40 to +8	°C
TSTG	Storage Temperature	-40 to +150	°C
Note: The part may not survive all maximums applied simultaneously.

Description

TriQuint's TQP4M3019 is a high power antenna switch in a single pole three throw (SP3T) configuration. The die utilizes TriQuint's PHEMT MMIC switch TQP4M3019 process to provide optimized cross-modulation performance for use in CDMA applications. PHEMT Switches are a very low DC current replacement for classic PIN diode based switches. This product is ideally suited to applications where the antenna of a CDMA handset is to be routed to the Cellular duplexer, the PCS duplexer and the GPS receiver input. The design of TQP4M3019 is symmetric and broadband allowing the user to assign cellular, PCS and GPS to ports RF1, RF2 or RF3 as desired.

Parameters:

Technical/Catalog Information	TQP4M3019
Vendor	Triquint Semiconductor Inc
Category	RF and RFID
RF Type	Cellular, CDMA
Package / Case	12-STSLP
Frequency	-
Features	-
Packaging	Tape & Reel (TR)
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	TQP4M3019 TQP4M3019
