TQM7M5012

Noise Figure :
Bandwidth :
Output Intercept Point :
Operating Supply Voltage :
Supply Current :
Maximum Operating Temperature :
Mounting Style : SMD/SMT
Packaging : Reel
Type : PowerEdge Power Amplifier Module
Operating Frequency : 850 MHz, 900 MHz
Package / Case : LGA-12


Features:

·Ultra-small 5x5mm form factor
·GSM/EDGE Multi-Mode Capability
·- 90 dBm Typical Rx Noise
·- 38 dB Typical ACPR (200KHz)
·- 66 dB Typical ACPR (400 KHz)
·- 76 dB Typical ACPR (600 KHz)
·1% Typical EVM rms
·> 50 dB Typical Dynamic Range
·GPRS Class 12
·Internally Matched Input and Output
·RoHS, MSL260C pending




Application

·GSM/EDGE/WEDGE Handsets
·GSM/EDGE/WEDGE Wireless Cards

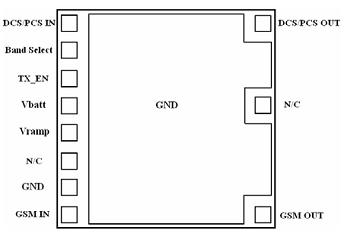

Pinout






Description

The TQM7M5012 is a ultra-small (5x5mm), GSM/EDGE Polar PAM for handset applications. This module has been optimized for excellent EDGE efficiency, Rx band noise performance, ACPR and EVM in an open loop polar modulation environment at EDGE class E2+ operation while maintaining high GSM/GPRS efficiency.

High reliability of TQM7M5012 is assured by utilizing TriQuint!s 3rd generatio InGaP HBT technology and by TriQuint's proven module desig techniques. The low profile, ultra-small package is enabled viaTriQuint's CuFli^TM technology.
