TQM7M5002

Type :
Operating Frequency :
Noise Figure :
Bandwidth :
Output Intercept Point :
Operating Supply Voltage :
Supply Current :
Maximum Operating Temperature :
Mounting Style :
Package / Case :
Packaging : Reel


Features:

• GSM/EDGE Multi-Mode Capability
• Optimized for Operation with Major Chipset Vendors
• > 50dB Typical Dynamic Range
• GPRS Class 12
• Fan-out Compatible with TQM7M5001
7x7mm GSM/GPRS/EDGE Linear PAM
• Fan-out Compatible with TQM7M4006
5x5mm GSM PAM
• Internally Matched Input and Output




Application

• GSM/EDGE handsets
• GSM/EDGE wireless cards and data links

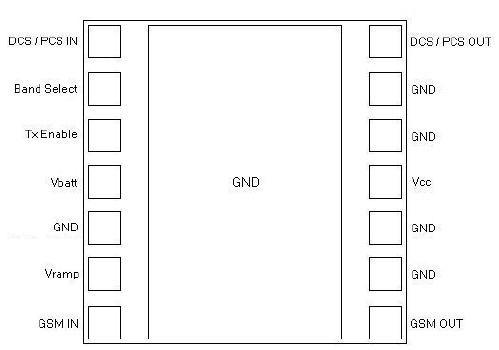

Pinout






Description

The TQM7M5002 is designed as one kind of extremely small (7x7mm), GSM/EDGE PAM for handset applications. It has been optimized for high EDGE efficiency and EDGE power class E2 operation while maintaining high GSM/GPRS efficiency. The latter is set directly from the Vramp input from the DAC. The module TQM7M5002 has Tx enable, band select, mode (EDGE or GSM) inputs. Module construction is a low-profile over-molded land-grid array on laminate. The CMOS controller implements a fully integrated closed-loop power control within the module for GSM Operation. This eliminates the need for any external couplers, power detectors, current sensing etc., to assure the output power level.

Features of the TQM7M5002 are:(1)GSM/EDGE multi-mode capability;(2)optimized for operation with major chipset vendors;(3)> 50dB typical dynamic range;(4)GPRS class 12;(5)fan-out compatible with TQM7M5001 7x7mm GSM/GPRS/EDGE linear PAM;(6)fan-out compatible with TQM7M4006 5x5mm GSM PAM;(7)internally matched input and output. If you want to know more information such as the electrical characteristics about the TQM7M5002, please download the datasheet in www.seekic.com or www.chinaicmart.com.

Parameters:

Technical/Catalog Information	TQM7M5002
Vendor	Triquint Semiconductor Inc
Category	RF and RFID
Package / Case	15-LGA
Voltage - Supply	-
Current - Supply	-
Gain	-
Frequency	-
RF Type	GSM, EDGE
Packaging	Tape & Reel (TR)
Noise Figure	-
P1db	-
Test Frequency	-
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	TQM7M5002 TQM7M5002
