TQM7138

Features: Analog continuous bias capability with excellen linearity over 1.9 to 3.0VDC and temperature stability over 30C to 85CExcellent PAESmall 10 pin 4x4mm module1xRTT CompatibleIndustry compatible digital quiescent current state controlAnalog continuous bias capabilityCMOS compatible logic in...

product image

TQM7138 Picture
See larger image
SeekIC No. : 004527916 Detail

TQM7138: Features: Analog continuous bias capability with excellen linearity over 1.9 to 3.0VDC and temperature stability over 30C to 85CExcellent PAESmall 10 pin 4x4mm module1xRTT CompatibleIndustry compati...

TQM7138 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TQM7138
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 Analog continuous bias capability with excellen linearity over 1.9 to 3.0VDC and temperature stability over 30C to 85C
 Excellent PAE
 Small 10 pin 4x4mm module
 1xRTT Compatible
 Industry compatible digital quiescent current state control
 Analog continuous bias capability
 CMOS compatible logic input
 Excellent Rx band noise performance
 Internally matched input and output
 Full ESD Protection
 Low leakage current


Application

 Cellular Band CDMA IS-95/98 based mobile phones.
 Single-Mode, Dual Mode, and Tri Mode CDMA/AMPS phones

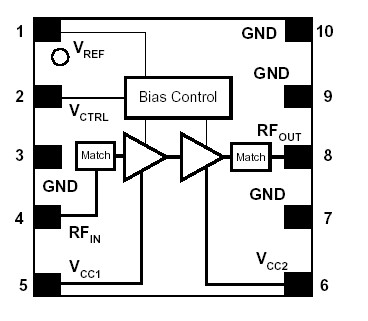

Pinout

Connection Diagram


Specifications

Symbol
Parameter
Absolute Maximum
Value
Units
VCC1, VCC2
 Power Supply Voltage, no RF Applied
                                          RF Applied
-0.5 to 6.0
-0.5 to 5.0
VDC
VREF, VCTRL
 Bias reference voltages (VREF) and bias control voltage (VCTRL).
-0.5 to 5.0
VDC
PDISS
 Power Dissipation
2.5
W
TC
 Case Temperature, Survival
-40 to +100
°C
TSTG
 Storage Temperature
-40 to +150
°C
RFIN
 DC Grounded RF input, 50ohm RF impedance
0 to 0V
VDC
RFOUT
 DC Blocked RF output, 50 ohm RF impedance
-20V to 20V
VDC



Description

The TQM7138 is a 3V, 2 stage SiGe HBT Power Amplifier Module designed for use in mobile phones. Its extremely small 4x4mm package makes it ideal for today's extremely small data enabled phones. Its RF performance meets the requirements for products designed to IS-95/98 standards. The TQM7138 provides the capability to be operated in one, two, or continuous quiescent current modes. In digital quiescent current mode operation, the TQM7138 is controlled from the base-band processor using a CMOS compatible ICQ voltage control voltage. Overall current consumption of the device is minimized by selecting the lowest ICQ state available for each power output level. RF input and output matching is included within the module; therefore, minimal external circuitry is required.

The TQM7138 gives excellent RF performance with low current consumption resulting in longer talk times in portable applications. The small 4mm square surface mount package is ideal for new generation small and light phones.
