Features:

• Compliant with ANSI X3T11 Fibre Channel Standard
• Full implementation of Fibre Channel's FC-1 layer
• Interfaces directly with TriQuint's GA9101/GA9102 and TQ9501/TQ9502 FC-0 Fibre Channel chipsets
• Suitable for proprietary serial links (virtual ribbon cable)
• Implements 8b/10b encoding and decoding
• Implements ordered set encoding and decoding
• Checks and generates 32-bit CRC and parity
• 10-bit TTL-compatible interface to Transmitter and Receiver
• 32-bit interface to the host
• Fully synchronous operation
• 160-pin PQFP


Pinout

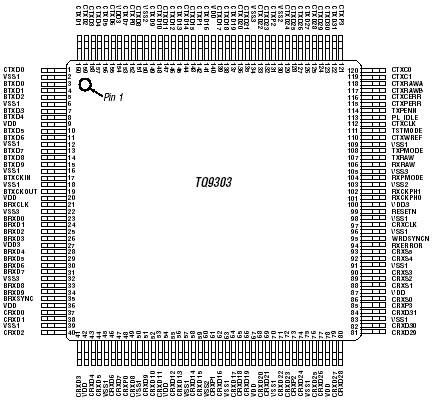

Connection Diagram


Specifications

Parameter
Min
Max
Unit
Storage temperature
-65
+150
° C
Ambient temperature
-55
+125
° C
Supply voltage to ground
-0.5
+7.0
V
DC input voltage
-0.5
VDD+0.5
V
DC input current
-55
+5
mA
Thermal resistance (JC)
5.6
°C / W



Description

The TQ9303 ENDEC (ENcoder/DECoder) implements 8b/10b encoding and decoding, ordered set encoding and decoding, and parity checking and generation as defined in the Fibre Channel Physical Signaling Interface Standard (FC-PH). The ENDEC fully implements the FC-1 layer of the Fibre Channel Standard. Implemented in a 0.8-micron CMOS process, the ENDEC of TQ9303 also performs 32-bit CRC checking and generation as defined in the FC-2 layer of the Fibre Channel specification.

The TQ9303 ENDEC interfaces directly to TriQuint's FC-0 layer Fibre Channel Transmitter (Tx) and Receiver (Rx) chipsets at the speeds shown below:
